SV-7000 Atrium
System code SV-7000 A
Price on requestGet a free quotation
SV-7000 Atrium series is designed for atrium constructions with roof windows, unifying the interior with the exterior.
- Glazing
- from 8mm up to 31mm
- System
- Architectural glazing
- Option for roof window for the ventilation of the space
- Option for motor use with remote control for opening / closing
- Special water collector profile for water drainage
Prefer to talk? +44 7426 890065or use the quick form below.
Free quotation · EN tested · 25-yr finish guarantee
CE Marked
UKCA
Qualicoat
01In detail
Overview
SV-7000 Atrium series is designed for atrium constructions with roof windows, unifying the interior with the exterior. Direct contact with the natural environment is not a luxury, offering ideal lighting and ventilation conditions in every building. High durability, perfect functionality and impeccable aesthetic result in a system that fits both modern and classic constructions.
02At a glance
What sets it apart

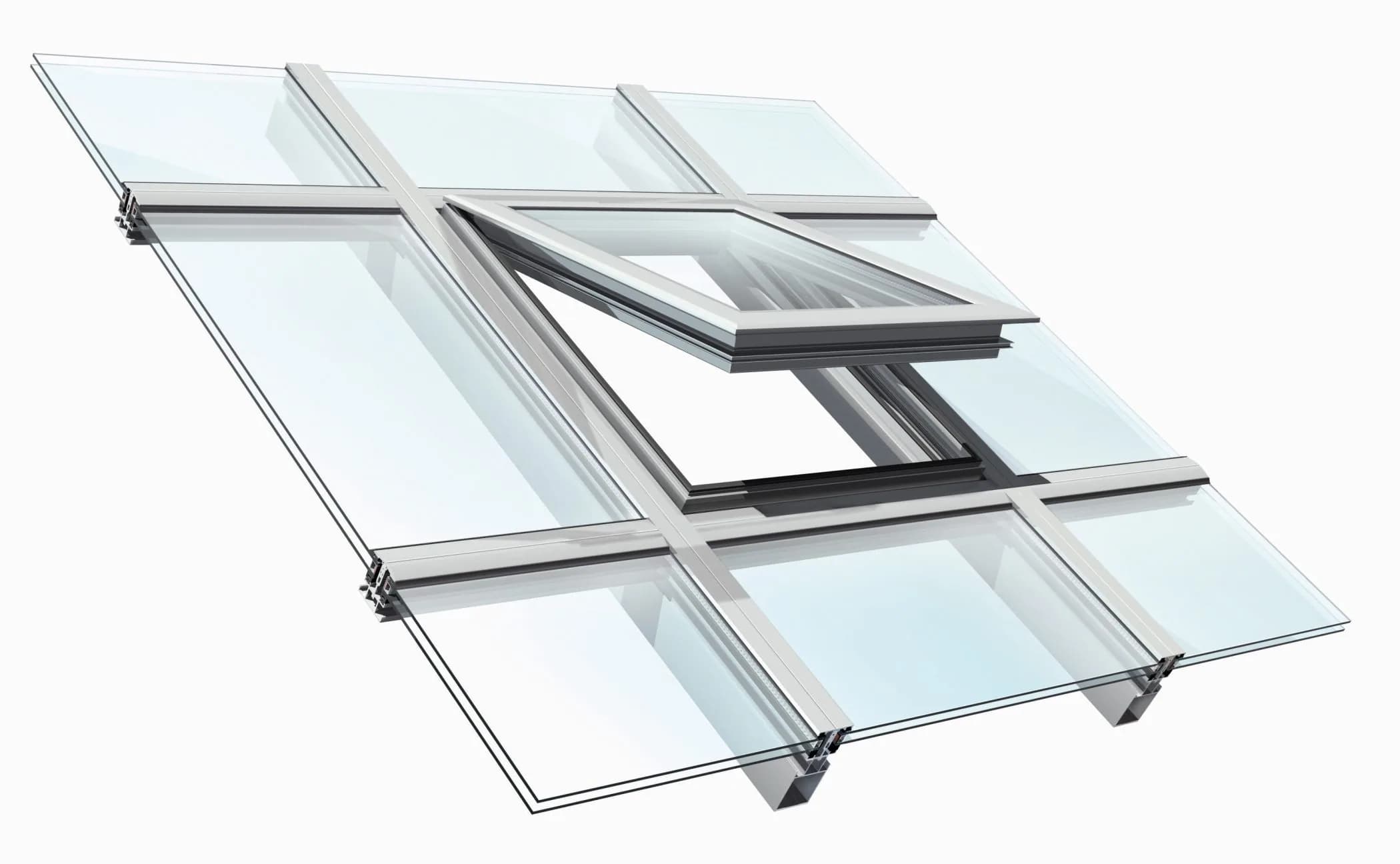

Option for roof window for the ventilation of the space

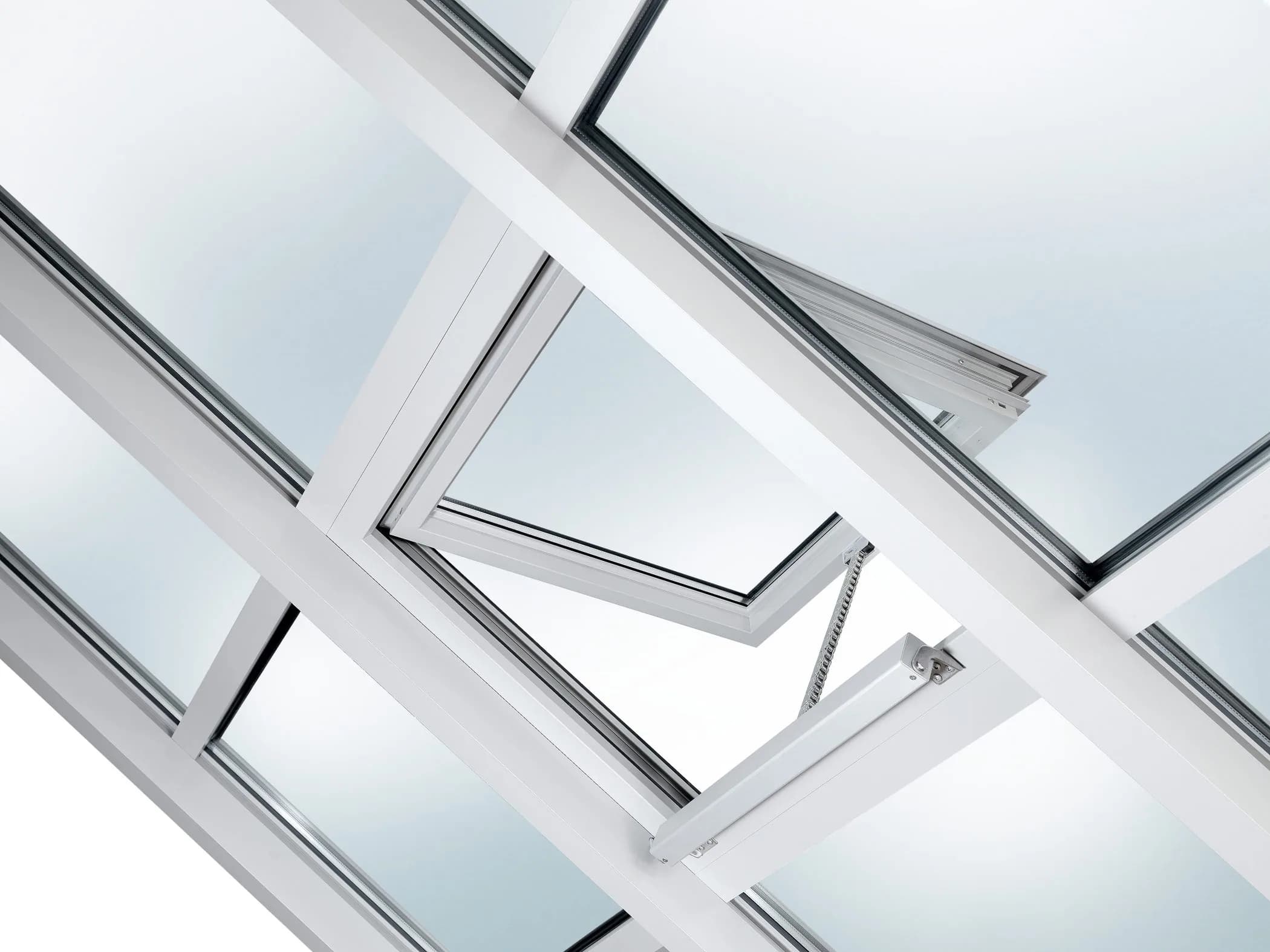

Option for motor use with remote control for opening / closing

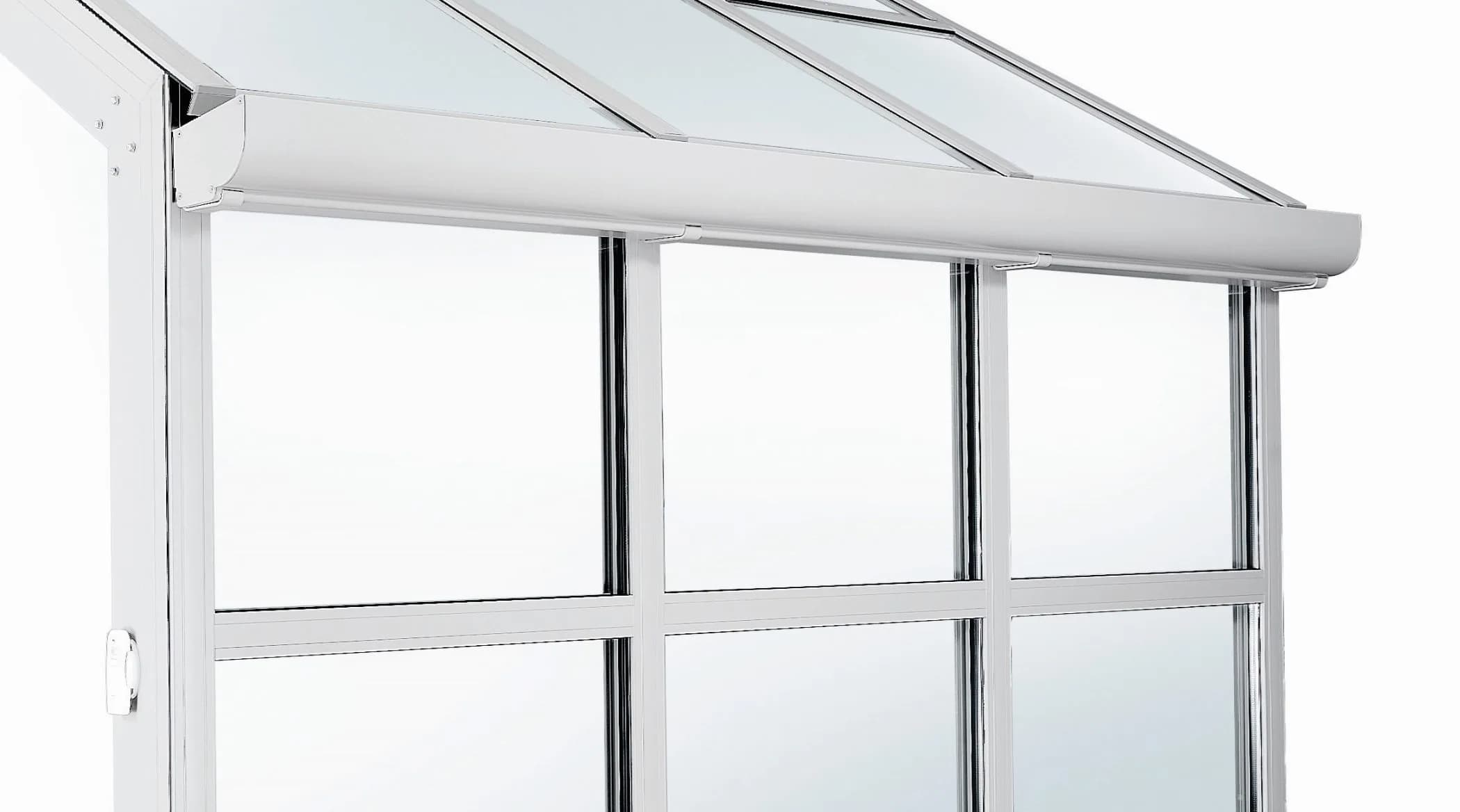

Special water collector profile for water drainage
03Built in
Key characteristics
- Creating vertical or inclined surfaces with angles of 7,5° to 90°.
- Optional installation of roof windows for ventilation with:
- Motor motion with remote control
- Crank motion
- Water drainage and gutter for effective removal of water
- Atrium in pyramid shape:
- Four (4) faces
- Eight (8) faces
- Twelve (12) faces
- Sixteen (16) faces
- Can be combined with SV-5500 Thermo and SV-8800 Lift Slide for complex structures.
04Tested performance
Technical specification
Figures depend on configuration, size and glazing — your quotation includes values calculated for your exact specification.
- Aluminium Alloy
- AIMgSi-0.5 F22
- Hardness
- 12 Webster
- Minimum coating thickness
- 75µm
- Profile thickness
- 2,2 – 2,5mm
- Tolerance according to
- EN DIN 12020-02
- Glazing thickness
- from 8mm up to 31mm
- Dimensions of the smallest column
- 60mm x 82.3mm
- Dimensions of the largest column
- 60mm x 188.9mm
- Dimensions of the frame profile
- 90.4mm x 66.9mm
- Dimensions of glass sash profile
- 77.4mm x 61.7mm
05Ways to build it
Construction types
06For specifiers
Section drawings
07Where it belongs
Applications & finishes
- Commercial
- Offices
- Atria
- Public Buildings
- Anthracite Grey
- Jet Black
- Traffic White
- Slate Grey
- Bronze Anodised
- Golden Oak
Every SIVAL system is finished to order: powder coating in any RAL shade (matt, satin or gloss), anodised tones, and textured wood-effect finishes including oak, walnut and rosewood. Dual-colour options let the interior differ from the exterior, and marine-grade pre-treatment is available for coastal sites. Powder-coated finishes are guaranteed for up to 25 years.
