SV-7800 Thermo Plus
System code SV-7800·Thermal break
Price on requestGet a free quotation
The robust choice in opening systems for enhanced thermal insulation!
- Thermal
- Uf from1,1 up to1,9 W/m²K
- Glazing
- 24-70mm
- System
- Thermal break
- Uniform exterior appearance with the option for a hidden sash
- Seamless movement inward or outward, with the option for a low threshold
- Superior functionality and aesthetics with the option for concealed hinges
- Larger openings for better views and more light, with a sash frame width of just 89mm
Prefer to talk? +44 7426 890065or use the quick form below.
Free quotation · EN tested · 25-yr finish guarantee
CE Marked
UKCA
PAS 24
Qualicoat
01In detail
Overview
The robust choice in opening systems for enhanced thermal insulation!
Robust construction. Impressive thermal insulation coefficients. Modern aesthetics. In short, a triple advantage solution with the SV-7800 Thermo Plus system, the latest system from SIVAL in opening aluminum architectural systems with 42mm polyamide. Fans of both modern and classic lines will be equally satisfied, as the product is available in profiles with either a straight line for modern aesthetics or a curved line that references the classic style.
An important feature is the option to install a multilocking mechanism, providing greater security for the space.
The profile design with a hidden sash offers a minimal aesthetic result in window applications.
Special profiles also allow for the construction of entrance doors.
02At a glance
What sets it apart

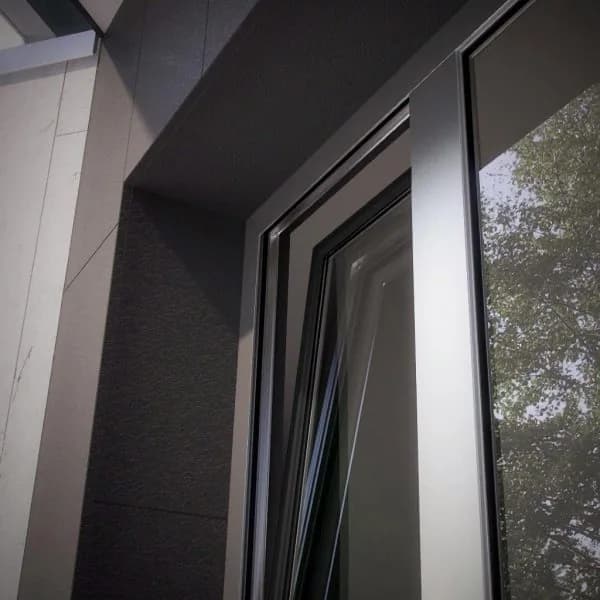

Uniform exterior appearance with the option for a hidden sash

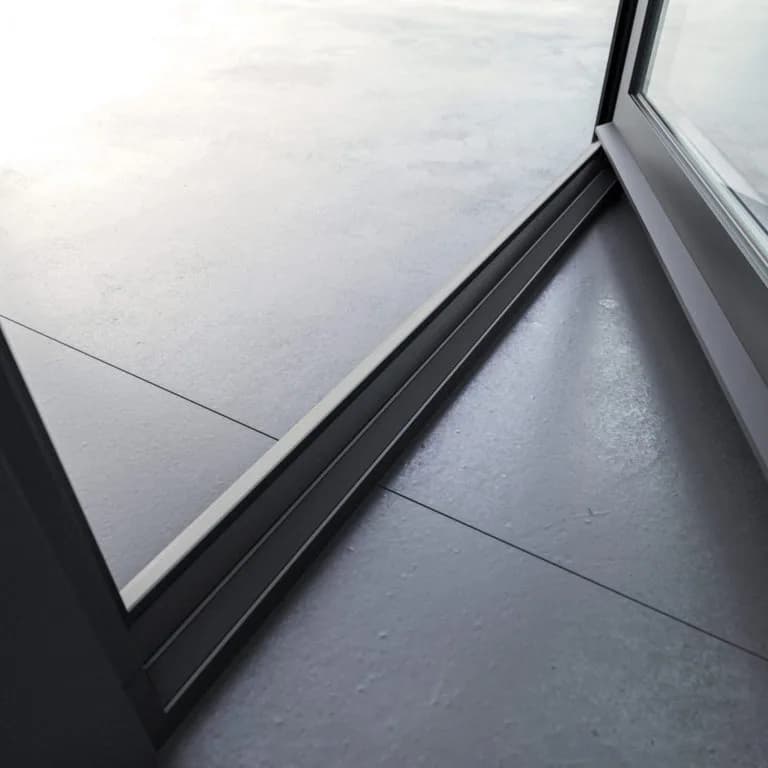

Seamless movement inward or outward, with the option for a low threshold

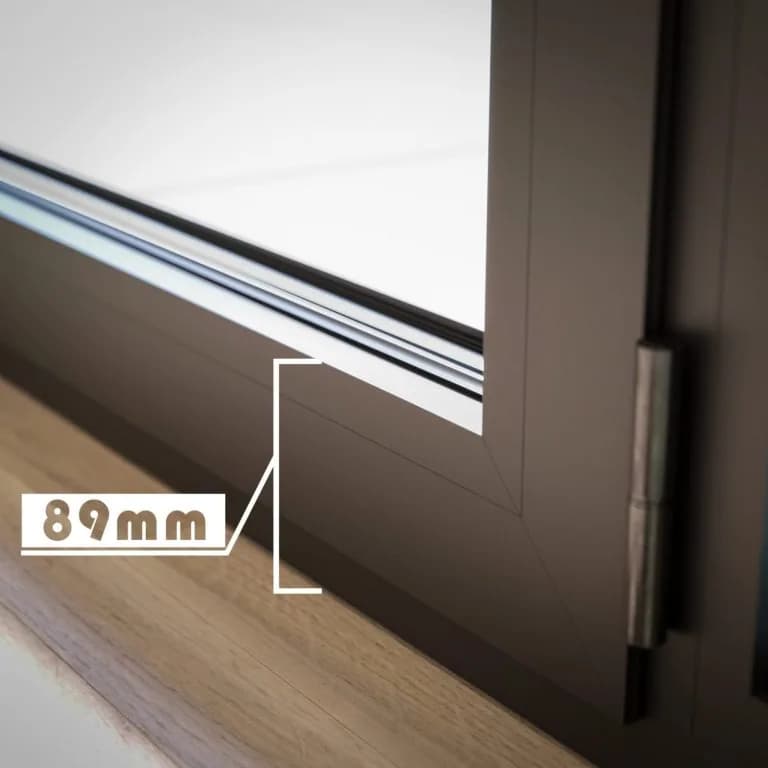

Superior functionality and aesthetics with the option for concealed hinges
Larger openings for better views and more light, with a sash frame width of just 89mm

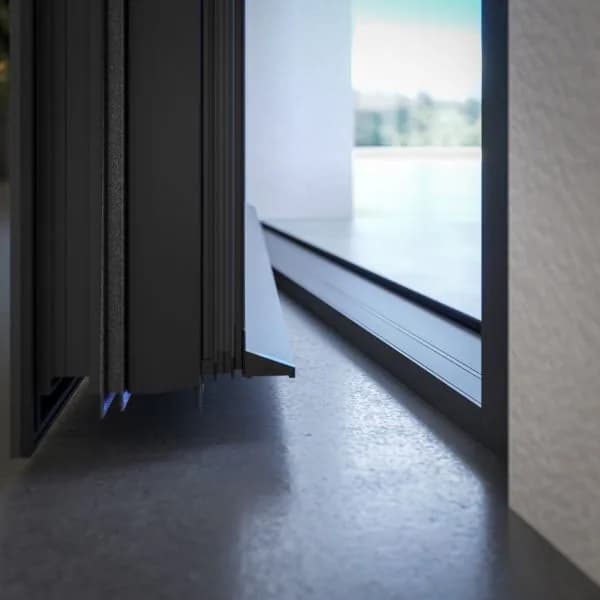

Complete sealing of entrance doors from air and water with a low threshold and gaskets

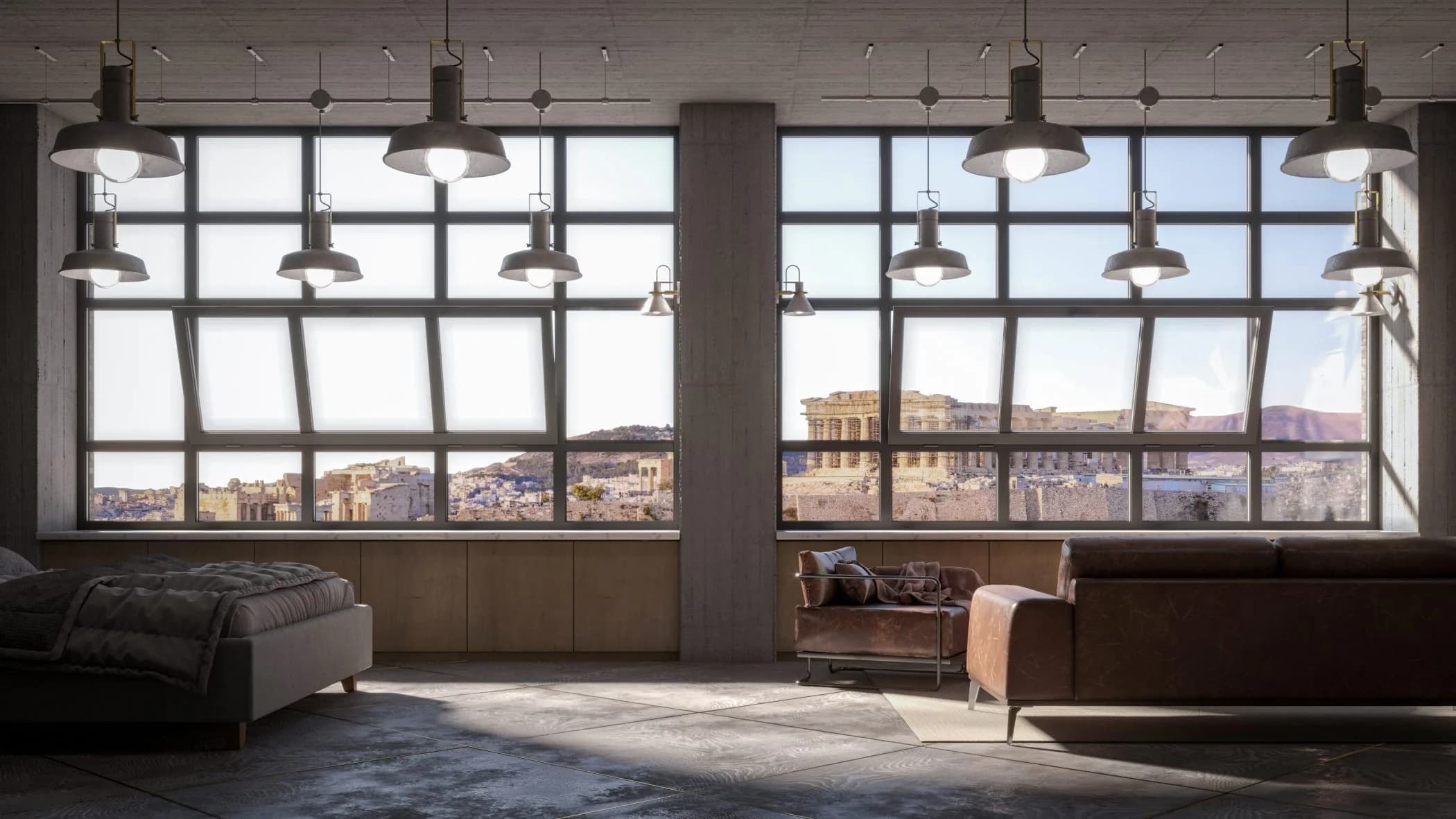

Option for an industrial aesthetic through partitioned designs (combining fixed and opening elements)
03Built in
Key characteristics
- Modern or classic aesthetics with profiles available in straight or curved lines.
- Enhanced security with the option of a Multilocking Mechanism.
- Exceptionally high thermal and sound insulation performance through:
- Option for double or triple glazing up to 70mm thick.
- Additional insulation between the glazing.
- Extra insulation between the polyamide strips.
- Use of co-extruded gaskets, fully recyclable (EPDM – Expanded EPDM).
- Minimal aesthetic with the option for a hidden sash for uniformity.
- Seamless movement both inward and outward, with a sleek design and the option for low thresholds in balcony doors and entrance doors.
- For situations where a combination of sliding and opening systems is required in the same space, the system can be combined with the SV-4700 Thermo Slide series and the premium SV-4000 Slide SI.
04Tested performance
Technical specification
Figures depend on configuration, size and glazing — your quotation includes values calculated for your exact specification.
- Aluminum alloy
- EN AW 6060 T6
- Hardness
- 12 Webster
- Minimum coating thickness
- 75µm
- Profile thickness
- 1,3-2mm
- Dimensional tolerances according to
- EN 12020-02
- Frame dimensions
- 78mm x 53mm
- Glass sash dimensions
- 86mm x 75mm
- Glazing thickness
- 24-70mm
- Polyamide width
- 42mm
- Frame thermal transmittance coefficient
- Uf from1,1 up to1,9 W/m²K
- Sash width range with Camera Europea
- 405-1600mm
- Sash width range with Multilocking Mech.
- 330-1400mm
- Sash height range with Camera Europea
- 520-2800mm
- Sash height range with Multilocking Mech.
- 280-2600mm
- Maximum sash weight with Camera Europea
- 90/130/160/200kg
- Maximum sash weight with Multilocking Mech.
- 80/100/150kg
05Ways to build it
Construction types
06For specifiers
Section drawings
07Where it belongs
Applications & finishes
- Residential
- Commercial
- Renovation
- New Build
- Anthracite Grey
- Jet Black
- Traffic White
- Slate Grey
- Bronze Anodised
- Golden Oak
Every SIVAL system is finished to order: powder coating in any RAL shade (matt, satin or gloss), anodised tones, and textured wood-effect finishes including oak, walnut and rosewood. Dual-colour options let the interior differ from the exterior, and marine-grade pre-treatment is available for coastal sites. Powder-coated finishes are guaranteed for up to 25 years.
