Aluminium Windows
SV-6000 Thermo
System code SV-6000·Thermal break
Price on requestGet a free quotation
The optimal solution in opening aluminum systems for quality-to-price ratio.
- Thermal
- Uf from 1,4 up to 4,2W/m²K
- Glazing
- 16-52mm
- System
- Thermal break
- Uniform exterior appearance with the option for hidden sash
- Seamless movement inward or outward, with the option for a low threshold
- Superior functionality and aesthetics with the option for concealed hinges
- Larger openings for better views and more light diffusion, with frame-sash profile width of just 89mm
Prefer to talk? +44 7426 890065or use the quick form below.
Free quotation · EN tested · 25-yr finish guarantee
CE Marked
UKCA
PAS 24
Qualicoat
01In detail
Overview
The optimal solution in opening aluminum systems for quality-to-price ratio. A modern, comprehensive opening system with strong advantages in performance, aesthetics, and design. It offers excellent performance coefficients in all aspects, even in the most adverse climatic conditions, and ensures maximum security.
Its wide range of construction options, combined with its technical properties, makes it the best match for the SV-3400 Slim Slide sliding system. This combination is the ideal choice for replacements of old systems, meeting all required specifications.
For a minimal aesthetic and enhanced security, the option of a hidden sash is available, offering external uniformity and reducing the visible frame surface.
02At a glance
What sets it apart
Uniform exterior appearance with the option for hidden sash
Seamless movement inward or outward, with the option for a low threshold
Superior functionality and aesthetics with the option for concealed hinges
Larger openings for better views and more light diffusion, with frame-sash profile width of just 89mm

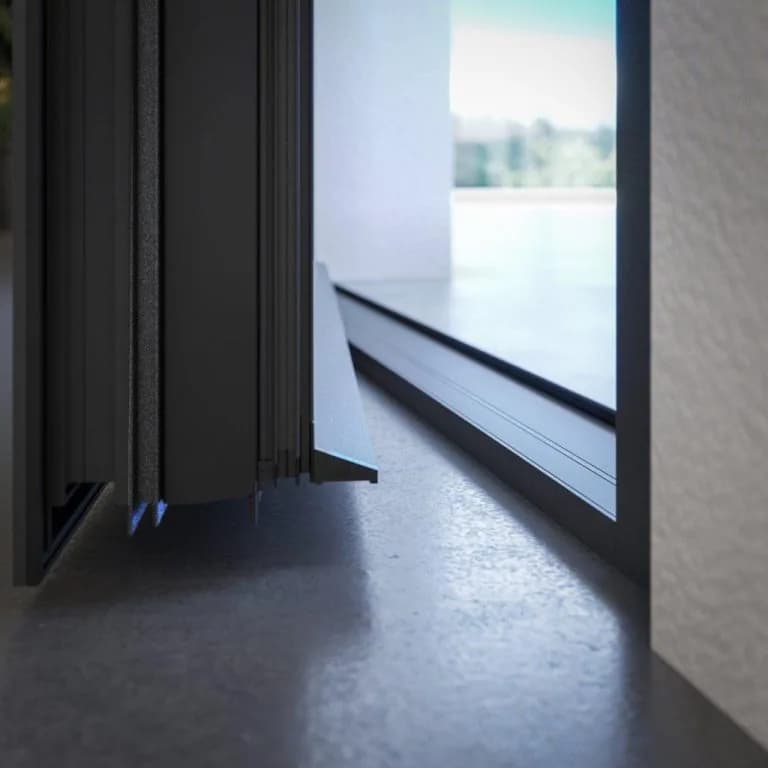

Complete sealing of entrance doors from air and water with a low threshold and gaskets

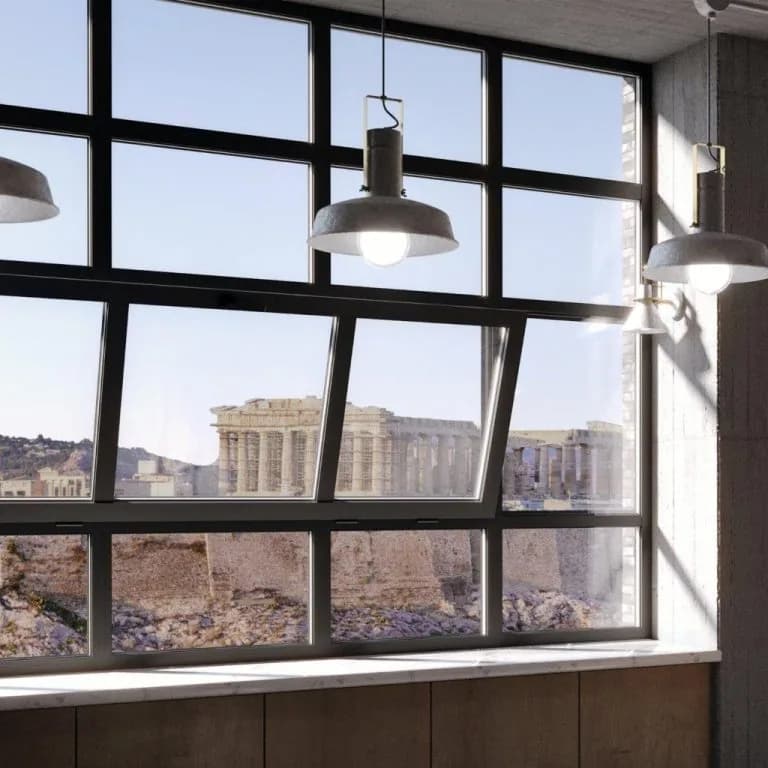

Option for an industrial aesthetic through partitioned designs (combining fixed and hinged elements)
03Built in
Key characteristics
- Modern aesthetics with straight-line profiles or the option for a curved line for those who prefer a classic style.
- Enhanced security with the option of a Multilocking Mechanism.
- High thermal and sound insulation with:
- Polyamides up to 24mm
- Option for double or triple glazing up to 52mm
- Additional insulation between polyamides
- Extra insulation around the glazing
- Co-extruded gaskets, fully recyclable (EPDM – Expanded EPDM)
- Option for a hidden sash with a focus on minimal design.
- Seamless movement both inward and outward with a sleek design and the option for a low threshold in balcony doors and entrance doors.
- For complex constructions combining opening and sliding systems in the same space, the SV-3400 Slim Slide series is recommended.
04Tested performance
Technical specification
Figures depend on configuration, size and glazing — your quotation includes values calculated for your exact specification.
- Minimum coating thickness
- 75µm
- Profile thickness
- 1,3-2mm
- Dimensional tolerances according to
- EN 12020-02
- Frame dimensions
- 60mm x 53mm
- Glass sash dimensions
- 68mm x 75mm
- Glazing thickness
- 16-52mm
- Polyamide width
- 16-24mm
- Frame thermal transmittance coefficient
- Uf from 1,4 up to 4,2W/m²K
- Maximum sash dimensions (W x H)
- 1,0m x 2,3m
- Maximum sash weight
- 150Kgr
05Ways to build it
Construction types
06For specifiers
Section drawings
07Where it belongs
Applications & finishes
- Residential
- Commercial
- Renovation
- New Build
- Anthracite Grey
- Jet Black
- Traffic White
- Slate Grey
- Bronze Anodised
- Golden Oak
Every SIVAL system is finished to order: powder coating in any RAL shade (matt, satin or gloss), anodised tones, and textured wood-effect finishes including oak, walnut and rosewood. Dual-colour options let the interior differ from the exterior, and marine-grade pre-treatment is available for coastal sites. Powder-coated finishes are guaranteed for up to 25 years.
