SV-5200 Facade
System code SV-5200
Price on requestGet a free quotation
SV-5200 Facade is considered to be SIVAL’s latest proposal in curtain wall systems.
- System
- Architectural glazing
- Max sash
- 150Kgr
- Available mullions 14-250mm.
- Wide range of tr ansoms 6-205mm.
- Special category mullions-tr ansoms with minimal design (I.D.).
- Available in standard and structur al versions.
Prefer to talk? +44 7426 890065or use the quick form below.
Free quotation · EN tested · 25-yr finish guarantee
CE Marked
UKCA
Qualicoat
01In detail
Overview
SV-5200 Facade is considered to be SIVAL’s latest proposal in curtain wall systems. It is available in two versions (standard or structural glazing), with the mullion’s depth starting at 14mm reaching 250mm and width to 50mm. It is high a performance system with a modern or retro design to choose from and provides an easy construction and installation process.
02Built in
Key characteristics
- Available mullions 14-250mm.
- Wide range of tr ansoms 6-205mm.
- Special category mullions-tr ansoms with minimal design (I.D.).
- Available in standard and structur al versions.
- Glass pane usage with thickness 10-50mm.
- Full recyclable double- extrusion rubber (EPDM-Expanded EPDM) for maximum thermal insulation.
- Capacity to meet all requirements according to KENAK (Greek Regulation for the Energy Efficiency of Buildings).
- Multi-degree angle construction.
- Increased thermal and sound insulation.
03Tested performance
Technical specification
Figures depend on configuration, size and glazing — your quotation includes values calculated for your exact specification.
- Aluminium alloy
- EN AW 6060 T6 / EN AW 6060 T66
- Hardness
- 12 Webster
- Minimum coating thickness
- 75µm
- Profile thickness
- 1,4-6mm
- Tolerance according to
- EN 12020-02
- Mullion length
- 14-250mm
- Transom length
- 6-205mm
- Sash-Frame polyamide width
- 14-16mm
- Maximum sash width parallel projected window
- 10-50mm
- Maximum sash weight opening window
- 150Kgr
- Maximum sash weight projected window
- 130Kgr
- Maximum sash weight parallel projected window
- 200Kgr
04For specifiers
Section drawings
05Where it belongs
Applications & finishes
- Commercial
- Offices
- Atria
- Public Buildings
- Anthracite Grey
- Jet Black
- Traffic White
- Slate Grey
- Bronze Anodised
- Golden Oak
Every SIVAL system is finished to order: powder coating in any RAL shade (matt, satin or gloss), anodised tones, and textured wood-effect finishes including oak, walnut and rosewood. Dual-colour options let the interior differ from the exterior, and marine-grade pre-treatment is available for coastal sites. Powder-coated finishes are guaranteed for up to 25 years.
ask about this system
Price the SV-5200 Facade for your project
Send your approximate sizes and we'll return a detailed quotation — free, itemised and without obligation.
Free, no-obligation quotes
Send drawings or approximate sizes and receive a detailed quotation within 2–3 working days.
Certified performance
Systems tested to EN standards for air, water and wind, with project U-value reports on request.
Guarantees that last
Lifetime structural warranty on profiles and up to 25 years on powder-coated finishes.
proof in place

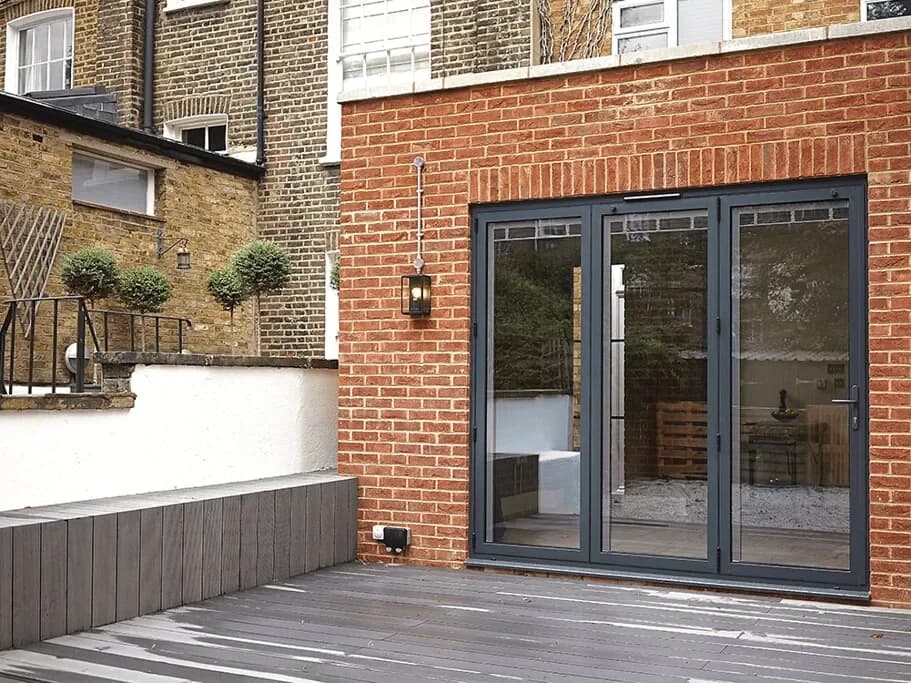

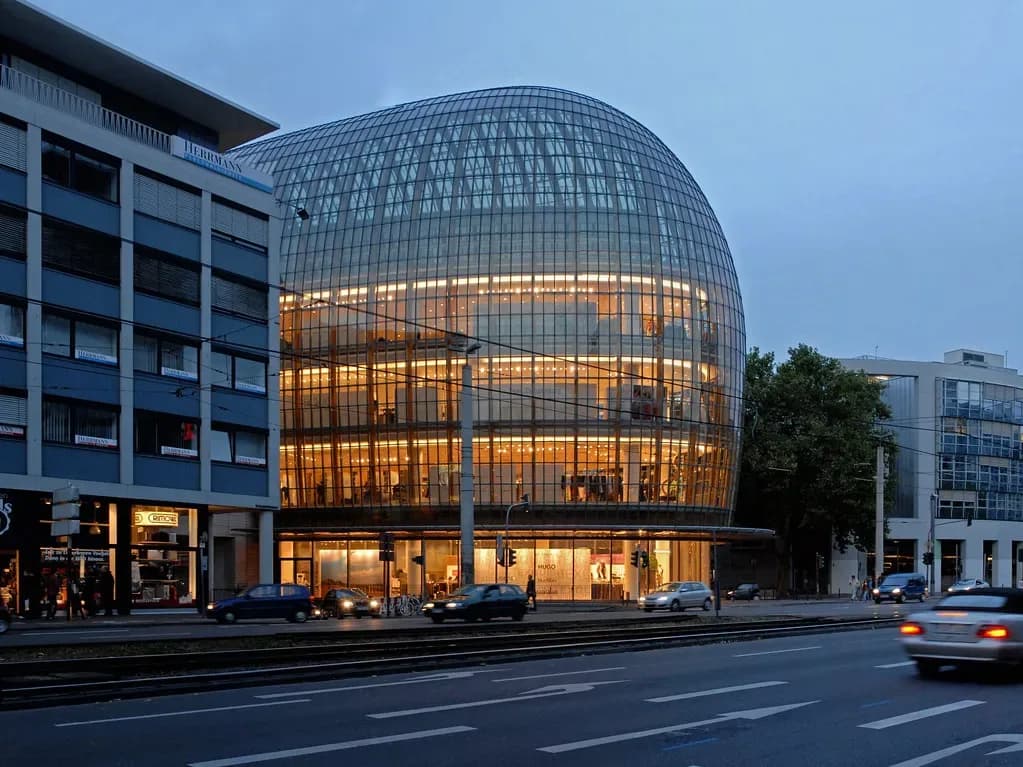

Seen in projects
