BestsellerSV-3600 Minimal
SV-3600 Minimal is SIVAL’s new sliding architectural system that combines the minimal architectural trend with SIVAL quality.
38-40mm
View System Price on request
BestsellerSliding Systems
SV-8800 Lift Slide
System code SV-8800·Thermal break
Price on requestGet a free quotation
For those who want to enjoy the unobstructed view of large openings, but at the same time ensure the least energy losses and sound insulation, the SV-8800 Lift Slide series is the solution.
- Thermal
- Uf from 4,0W/m²K
- Glazing
- 20-42mm
- System
- Thermal break

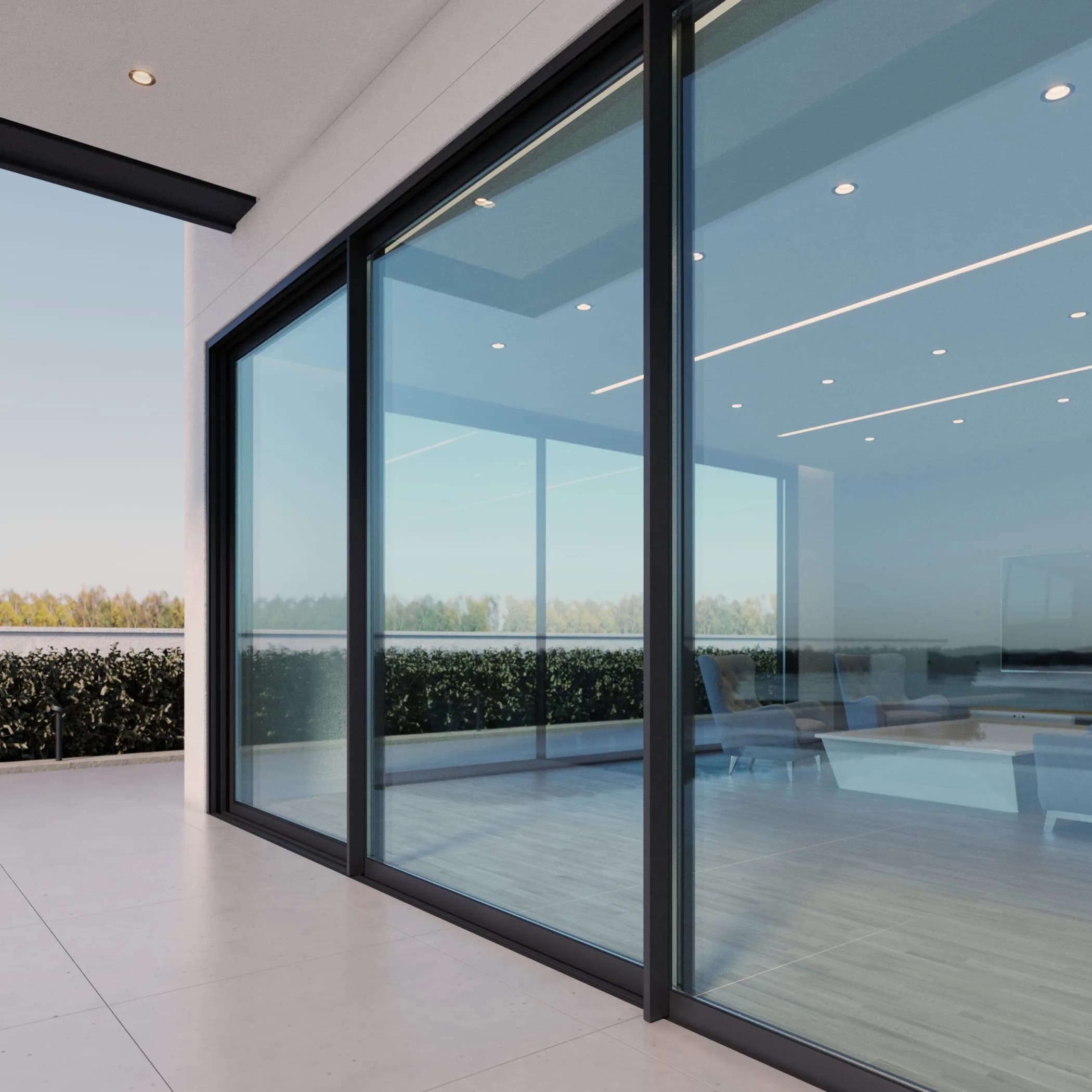

- Ability to cover big opening dimensions with specially designed reinforced profiles

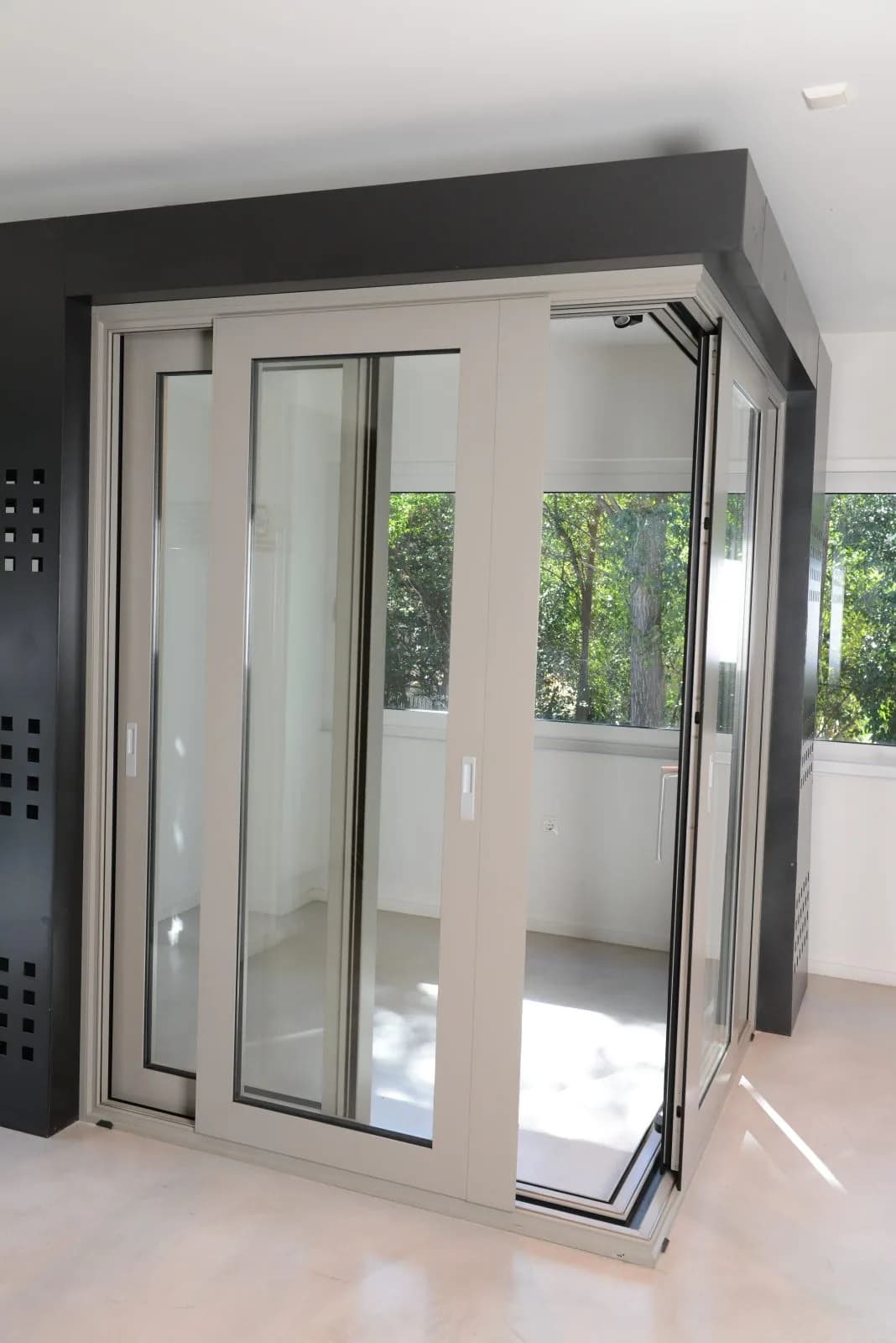

- Ability for a 90° corner construction without adding a corner column.

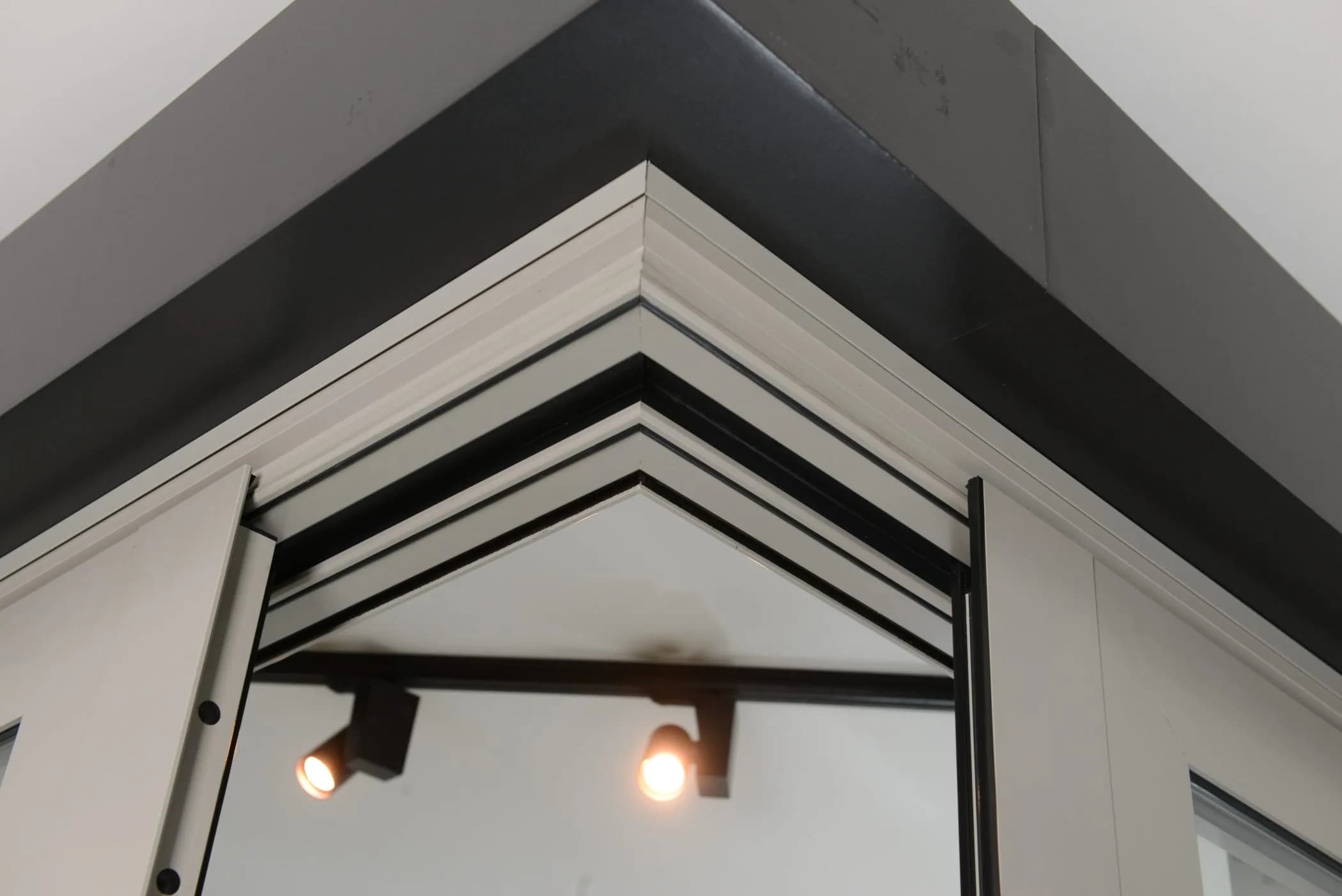

- Possibility of angular construction for unobstructed view with the opening of the sashes
Prefer to talk? +44 7426 890065or use the quick form below.
Free quotation · EN tested · 25-yr finish guarantee
CE Marked
UKCA
PAS 24
Qualicoat
01In detail
Overview
For those who want to enjoy the unobstructed view of large openings, but at the same time ensure the least energy losses and sound insulation, the SV-8800 Lift Slide series is the solution. The profiles of the series and the lifting mechanism (Lift & Slide) make it extremely functional at the high weights required by the glass on a large surface.
In the successive construction systems, a new special engineered mullion is placed on the sash (in the middle of the frame), in order to support it for very large constructions. All windows and balcony – doors can be equipped with multiple locking offering satisfactory security.
The system allows the construction of successive frames with insect screen, simple successive with fixed sash frame, four – sash joined face systems, built-in single or double sash frames and 90° angular constructions.
02At a glance
What sets it apart
Ability to cover big opening dimensions with specially designed reinforced profiles
Ability for a 90° corner construction without adding a corner column.
Possibility of angular construction for unobstructed view with the opening of the sashes
03Built in
Key characteristics
- Modern aesthetics due to the straight lines design.
- Advanced security with the option of Multi-Locking Mechanism.
- Excellent thermal and sound insulation due to the use of:
- Polyamide of 24mm
- The use of double or triple glazing up to 50mm.
- Option for use of Lift & Slide Mechanism.
- Absolute sealing with:
- Specially designed sealing rubbers.
- plastic cover (PVC) and elastic block (EPDM) for bottom railings
- rubber tubular gaskets (EPDM) provide absolute seal to the sashes.
- Option for a 90° corner construction without adding a corner column.
- For complex constructions, it can be combined with SIVAL 5500 Hybrid.
04Tested performance
Technical specification
Figures depend on configuration, size and glazing — your quotation includes values calculated for your exact specification.
- Aluminium Alloy
- EN AW 6060 T66
- Hardness
- 12 Webster
- Minimum coating thickness
- 75µm
- Profile thickness
- 1,7mm
- Tolerance according to
- EN 12020-02
- Width of successive rail
- 151,6mm (two sashes)
- Width of in-wall rail
- 111,3mm(glass–insect screen)
- Width of glass sash
- 63mm
- Glazing thickness
- 20-42mm
- Polyamide width
- 18-24mm
- Factor of thermal conductivity for frame
- Uf from 4,0W/m²K
- Maximum sash dimensions (WxH)
- Rw(C;Ctr)= 35(-1;-3) db
- Maximum sash weight
- 400 Kg
05Ways to build it
Construction types
06For specifiers
Section drawings
07Where it belongs
Applications & finishes
- Residential
- Extensions
- Hospitality
- Renovation
- Anthracite Grey
- Jet Black
- Traffic White
- Slate Grey
- Bronze Anodised
- Golden Oak
Every SIVAL system is finished to order: powder coating in any RAL shade (matt, satin or gloss), anodised tones, and textured wood-effect finishes including oak, walnut and rosewood. Dual-colour options let the interior differ from the exterior, and marine-grade pre-treatment is available for coastal sites. Powder-coated finishes are guaranteed for up to 25 years.
ask about this system
Price the SV-8800 Lift Slide for your project
Send your approximate sizes and we'll return a detailed quotation — free, itemised and without obligation.
Free, no-obligation quotes
Send drawings or approximate sizes and receive a detailed quotation within 2–3 working days.
Certified performance
Systems tested to EN standards for air, water and wind, with project U-value reports on request.
Guarantees that last
Lifetime structural warranty on profiles and up to 25 years on powder-coated finishes.
