SV-4700 Thermo Slide
System code SV-4700·Thermal break
Price on requestGet a free quotation
SV-4700 Thermo Slide is the new advanced proposition by SIVAL for sliding architectural systems with thermal insulation.
- Thermal
- Uf from 3,0 up to 6,1 W/
- Glazing
- 20-34mm
- System
- Thermal break
- Ability to cover big opening dimensions with specially designed reinforced profiles
- Combination of smoother sliding and better sealing with rubber instead of brush through the option for Lift & Slide Mechanism
- High thermal insulation coefficients close to the levels of opening systems
- Option for combination of glass, shutter, and screen in in-wall systems through a narrow rail with width of only 117mm
Prefer to talk? +44 7426 890065or use the quick form below.
Free quotation · EN tested · 25-yr finish guarantee
CE Marked
UKCA
PAS 24
Qualicoat
01In detail
Overview
SV-4700 Thermo Slide is the new advanced proposition by SIVAL for sliding architectural systems with thermal insulation.
The system offers high standards, with simple straight line design, that combines the perfect functionality with the modern aesthetics.
Furthermore, SV-4700 Thermo Slide offers the option of Fix & Slide typology. The specific typology makes the system the ideal choice for hotel constructions, where advanced performance coefficients are needed.
The system offers the option for minimal aesthetics and almost unobstructed view with the use of narrow profiles. In this aspect the system is designed with profiles of bottom rails of 42mm and 34mm width as also with optional hidden sliding insect screen of only 25mm width.
The system can be perfectly combined with the SV-6000 Thermo, SV-6800 Thermo & SV-8500 Thermo systems for combosite structures.
02At a glance
What sets it apart

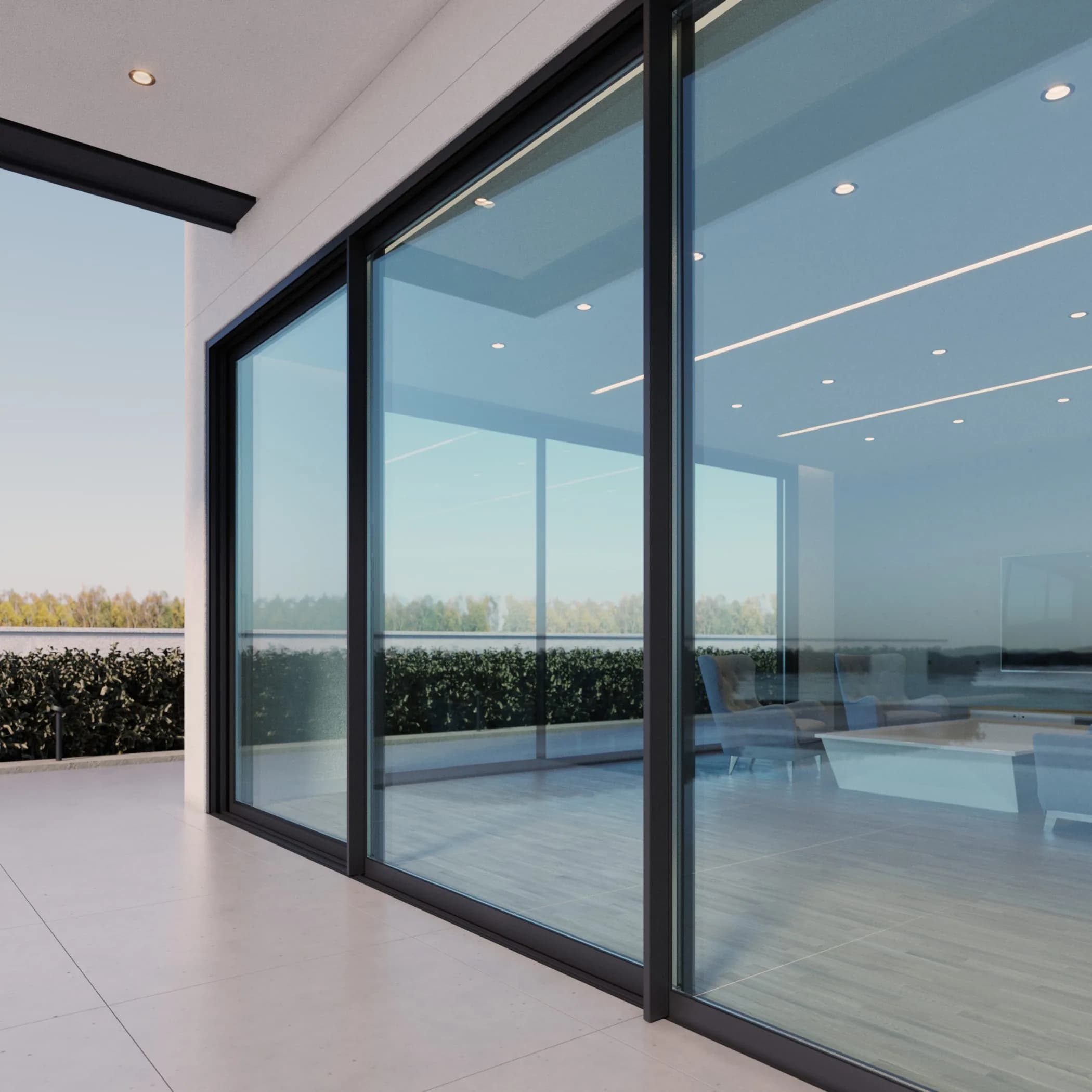

Ability to cover big opening dimensions with specially designed reinforced profiles

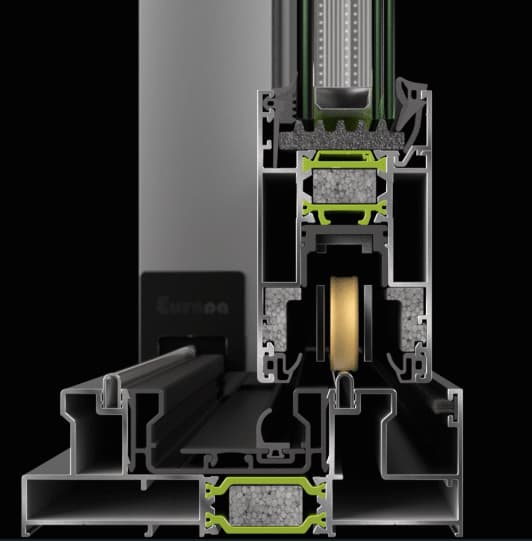

Combination of smoother sliding and better sealing with rubber instead of brush through the option for Lift & Slide Mechanism

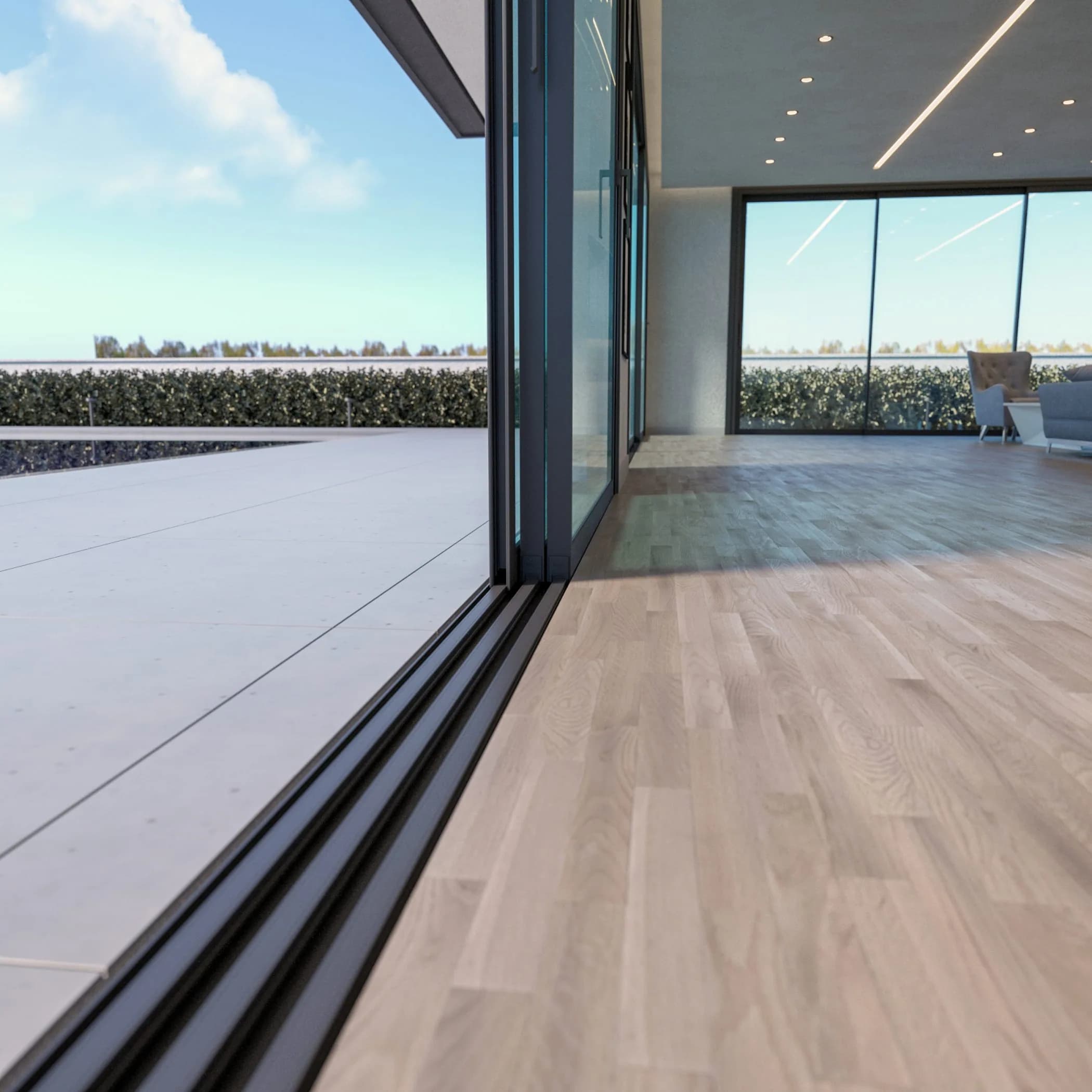

High thermal insulation coefficients close to the levels of opening systems

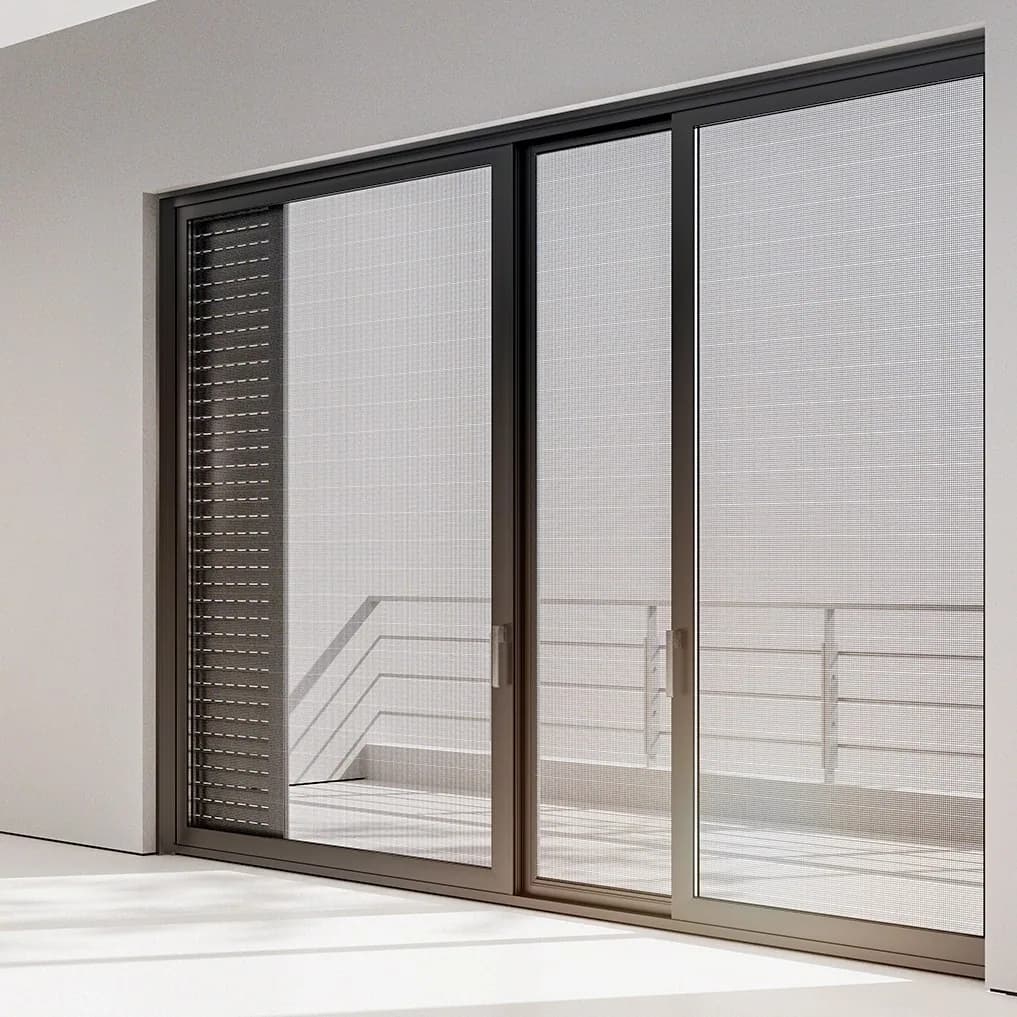

Option for combination of glass, shutter, and screen in in-wall systems through a narrow rail with width of only 117mm

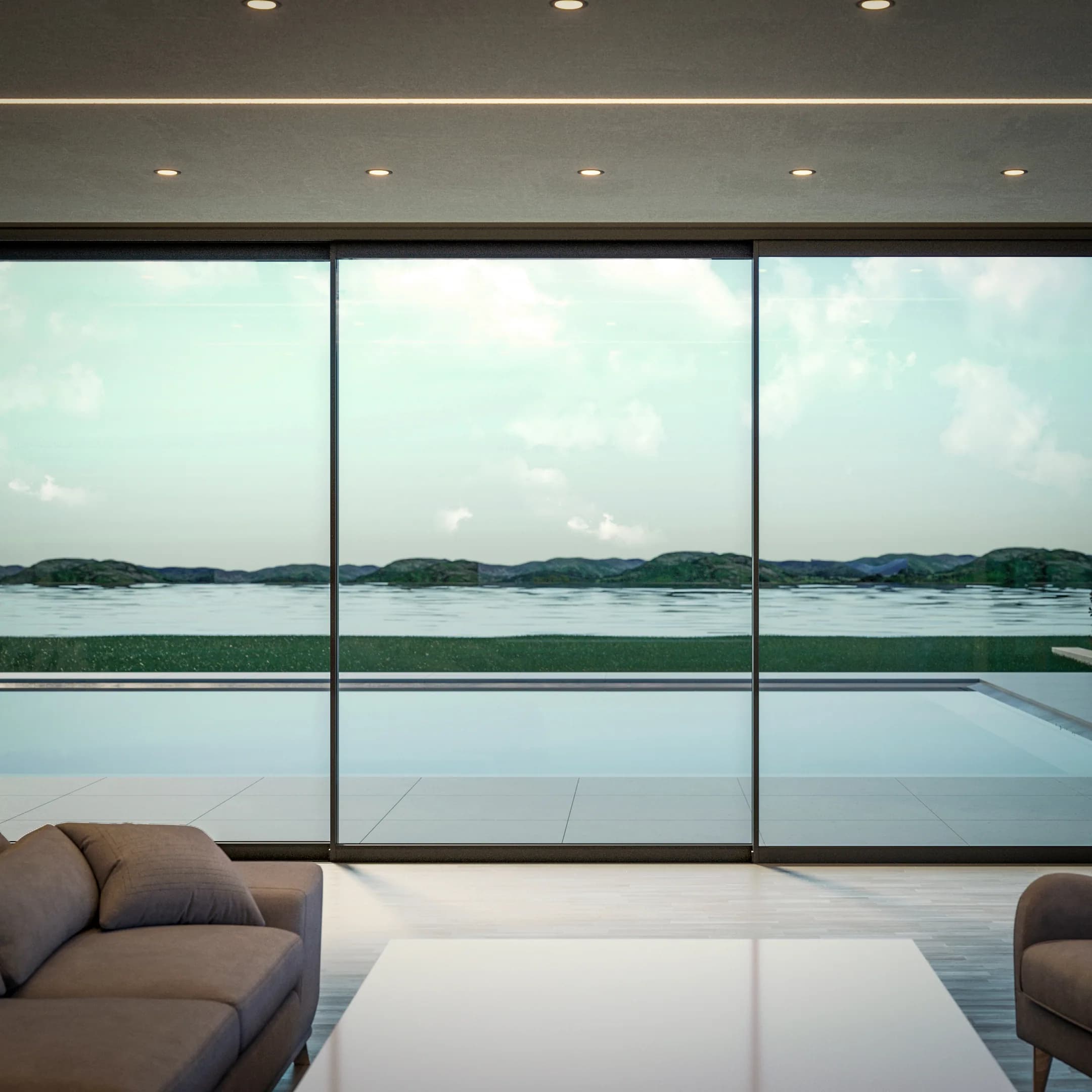

Better view and unhindered light diffusion by choosing a profile for a narrow interlock profile between the sashes
Option for sliding frames, specially designed for replacement of old systems, with non-protruding bottom rail from the floor
03Built in
Key characteristics
- Smooth sliding with:
- stainless steel lamina on rail profiles.
- optional Lift & Slide Mechanism.
- Modern aesthetics with straight line design.
- Maximum security with the option of Multi-Locking Mechanism.
- Excellent thermal insulation:
- option for double or triple glazing up to 34mm.
- polyamides up to 24mm.
- Absolut sealing with:
- plastic (PVC) covers of the railings
- elastic rail block seals (EPDM) for successive and in-wall systems or rubber tubular gaskets (EPDM)
- optional Lift & Slide mechanism
- Unhindered movement to the interior or exterior space with delicate aesthetics, with the option of low bottom rail profiles.
- Minimal aesthetics with:
- Straight-line profile design
- Narrow hook for successive sashes with width of 25mm
- Specially design of narrow sliding insect screen sash of 25mm width
- Option for flat bottom rail for double and triple successive sashes
- Option for Fix & Slide construction typology (specially designed for the needs of hotel constructions).
- Can be combined with the opening systems SV-6800 Thermo, SV-6000 Thermo and SV-8500 Thermo for complex constructions.
04Tested performance
Technical specification
Figures depend on configuration, size and glazing — your quotation includes values calculated for your exact specification.
- Aluminium Alloy
- EN AW 6060 T6
- Hardness
- 12 Webster
- Minimum coating thickness
- 75µm
- Profile thickness
- 1,4mm
- Tolerance according to
- EN 12020-02
- Width of successive rail
- 120mm (two sashes)
- Width of in-wall rail
- 117mm/134mm(glass–insect screen–shutter)
- Width of glass sash
- 47mm
- Glazing thickness
- 20-34mm
- Polyamide width
- 22-24mm
- Factor of thermal conductivity for frame
- Uf from 3,0 up to 6,1 W/(m2*K)
- Maximum sash dimensions (WxH)
- 2,5m x 3,0 m
- Maximum sash weight
- 400 Kgr
05Ways to build it
Construction types
06For specifiers
Section drawings
07Where it belongs
Applications & finishes
- Residential
- Extensions
- Hospitality
- Renovation
- Anthracite Grey
- Jet Black
- Traffic White
- Slate Grey
- Bronze Anodised
- Golden Oak
Every SIVAL system is finished to order: powder coating in any RAL shade (matt, satin or gloss), anodised tones, and textured wood-effect finishes including oak, walnut and rosewood. Dual-colour options let the interior differ from the exterior, and marine-grade pre-treatment is available for coastal sites. Powder-coated finishes are guaranteed for up to 25 years.
