SV-3400 Slim Slide
System code SV-3400·Thermal break
Price on requestGet a free quotation
SV-3400 Slim Slide is the new thermal break sliding system designed specifically to combine high quality and flexibility.
- Thermal
- Uf from 2,6 up to 4,2 W/m²K
- Glazing
- up to 24mm
- System
- Thermal break
- Ability to cover big opening dimensions with specially designed reinforced profiles
- Combination of smoother sliding and better sealing with rubber instead of brush through the option for Lift & Slide Mechanism
- High thermal insulation coefficients close to the levels of opening systems
- Option for combination of glass, shutter, and screen in in-wall systems through a narrow rail with width of only 95mm
Prefer to talk? +44 7426 890065or use the quick form below.
Free quotation · EN tested · 25-yr finish guarantee
CE Marked
UKCA
PAS 24
Qualicoat
01In detail
Overview
SV-3400 Slim Slide is the new thermal break sliding system designed specifically to combine high quality and flexibility. The system offers wide range of construction choices.
SV-3400 Slim Slide can cover all the possible typologies of sliding systems with a bottom rail of 42mm and 32mm height. The special interlock profile with visible profile at 25mm is a characteristic that provide design, unhindered view and uniqueness.
Together with the use of specially designed profiles the system provides the fabricator/constructor with the ability to cover extended dimensions of openings with height up to 2,6m and 10m² glazing surface.
02At a glance
What sets it apart
Ability to cover big opening dimensions with specially designed reinforced profiles

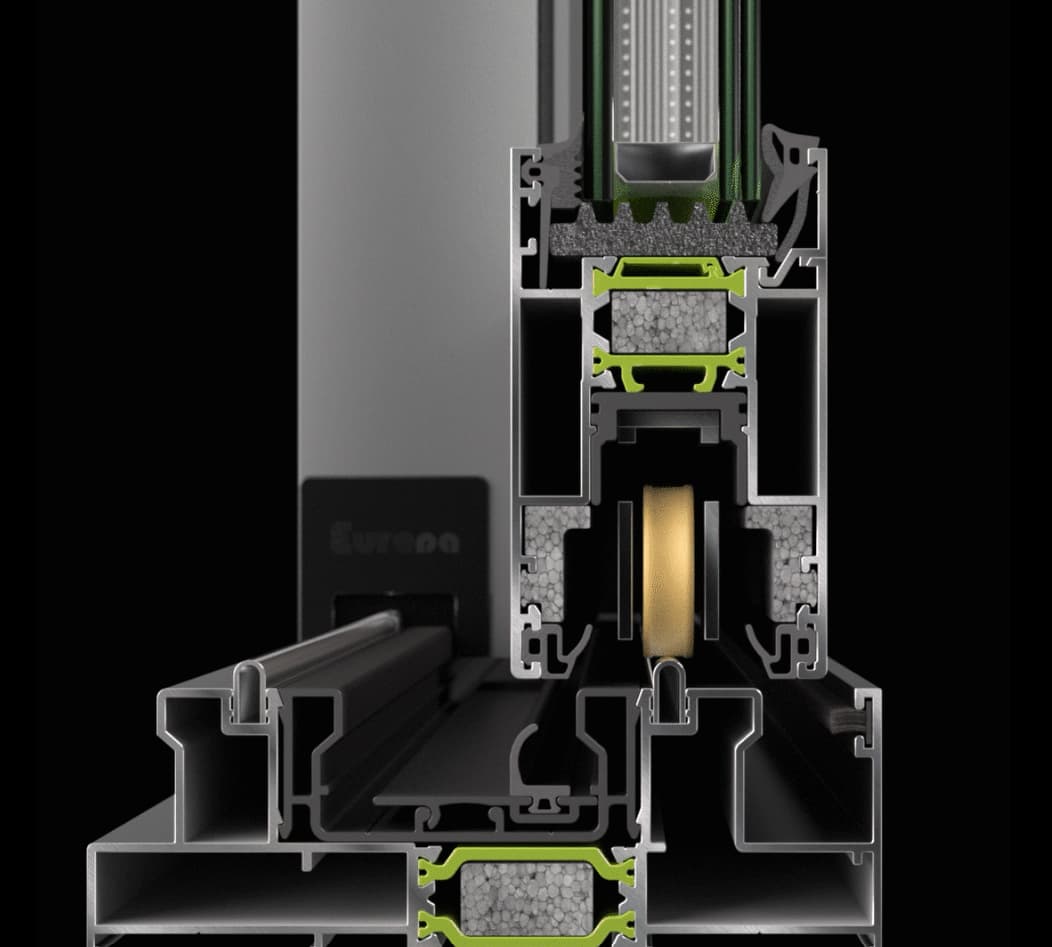

Combination of smoother sliding and better sealing with rubber instead of brush through the option for Lift & Slide Mechanism
High thermal insulation coefficients close to the levels of opening systems

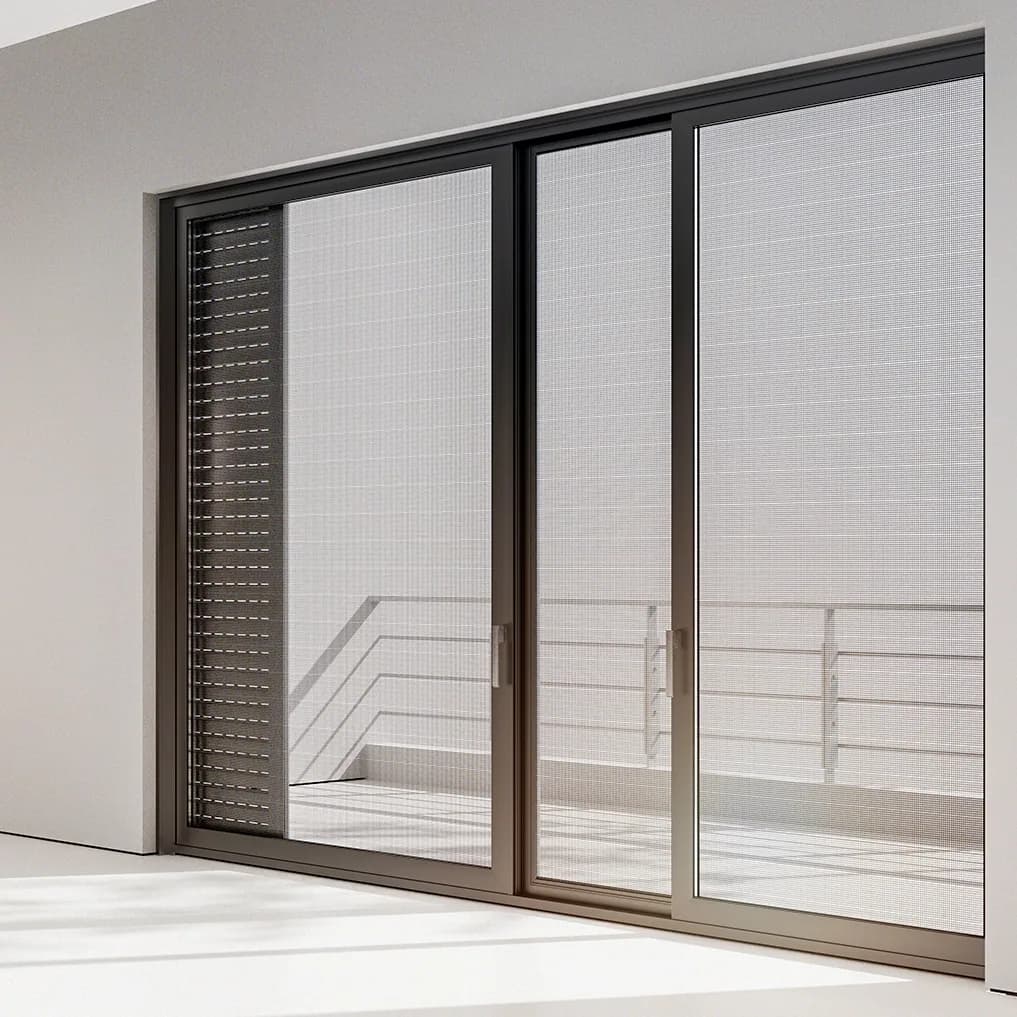

Option for combination of glass, shutter, and screen in in-wall systems through a narrow rail with width of only 95mm

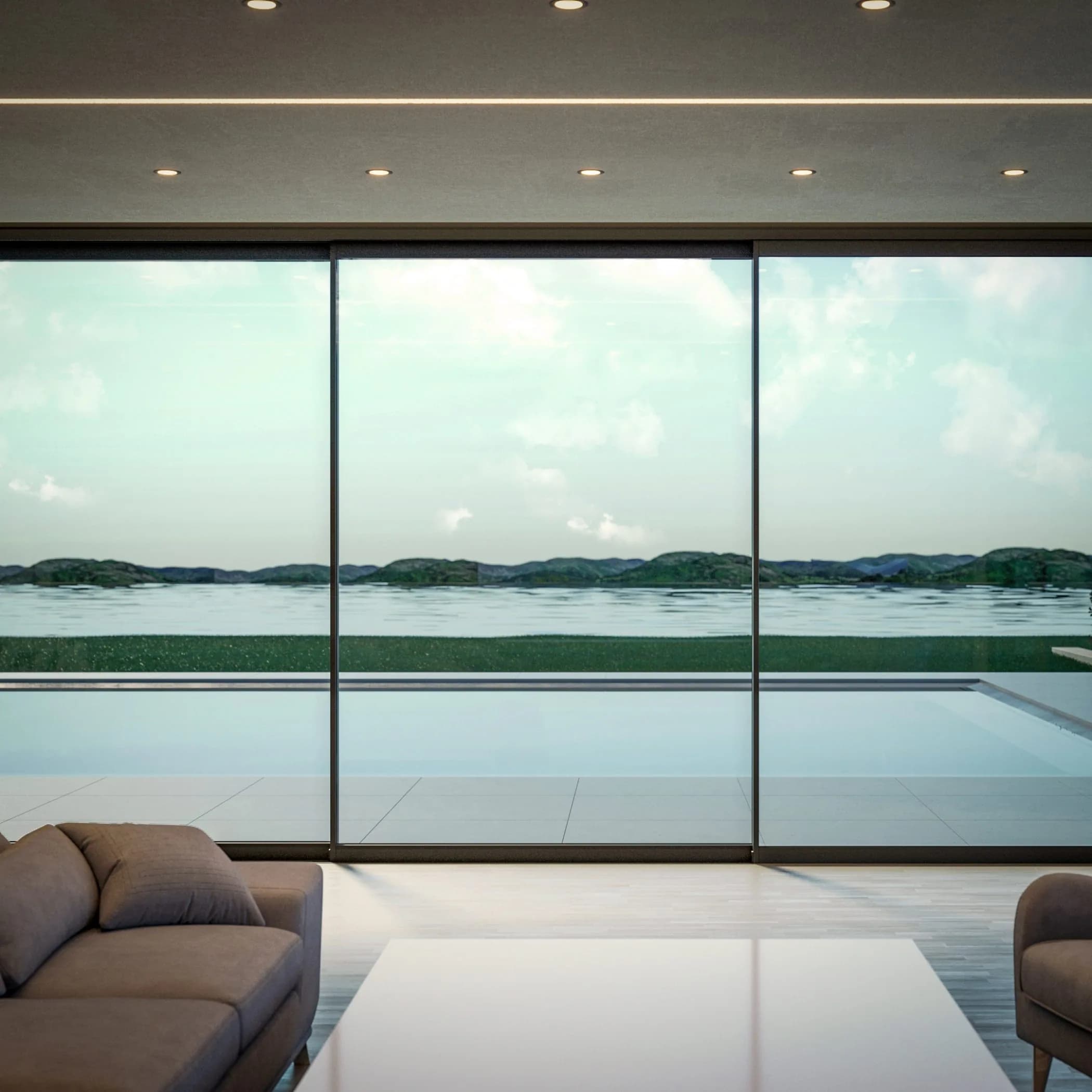

Better view and unhindered light diffusion by choosing a profile for a narrow interlock profile between the sashes

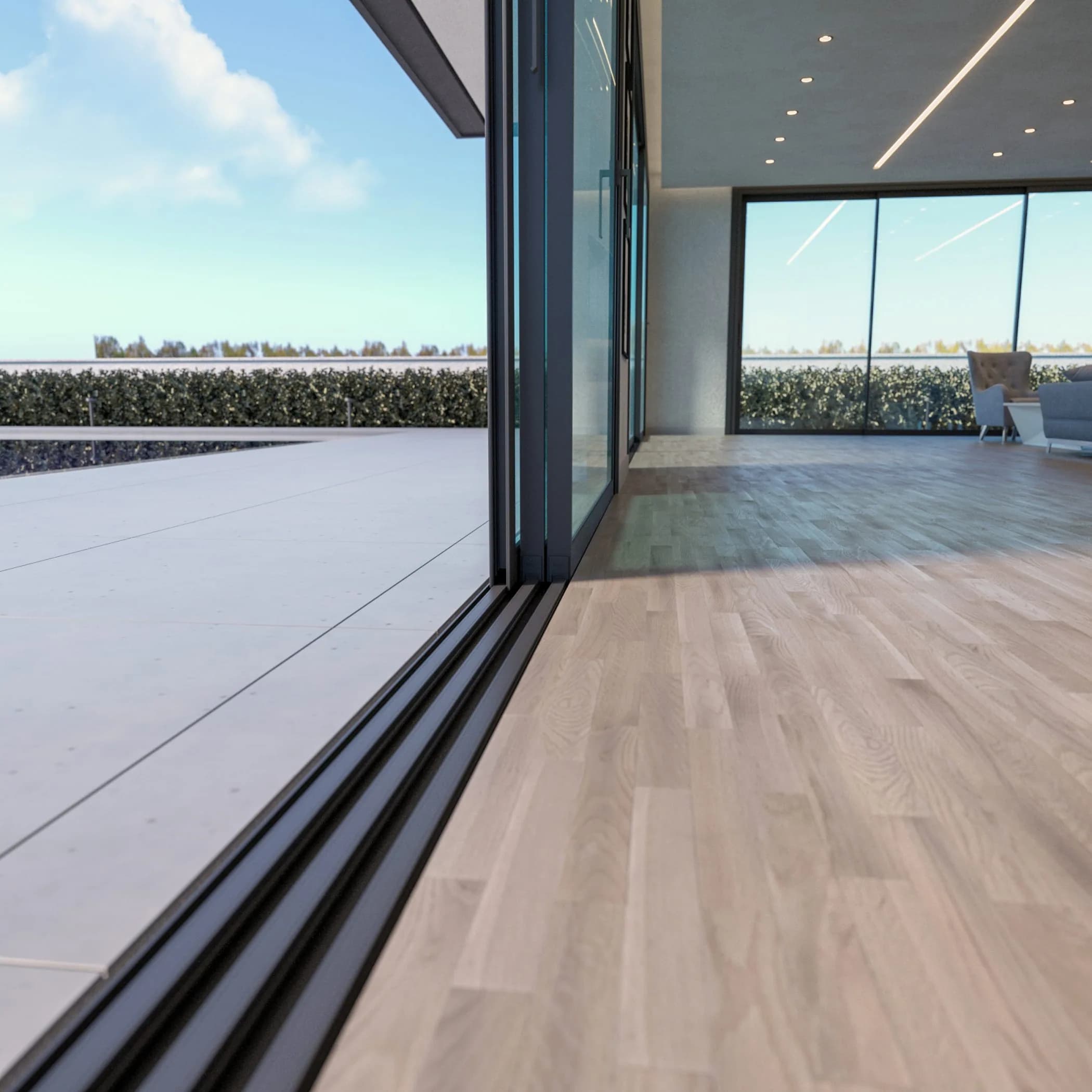

Option for sliding frames, specially designed for replacement of old systems, with non-protruding bottom rail from the floor
03Built in
Key characteristics
- Smooth sliding with:
- Stainless steel lamina on rail profiles.
- Innovative, for the category of narrow rail, option for Lift & Slide Mechanism.
- Modern aesthetics with straight-line design.
- Maximum security with the option of Multi-Locking Mechanism.
- Excellent thermal and sound insulation:
- Option for double or triple glazing up to 24mm.
- Polyamides up to 24mm.
- Absolute sealing with:
- Plastic (PVC) covers of the railings
- Elastic rail block seals (EPDM) for successive and in-wall systems or rubber tubular gaskets (EPDM)
- Two levels of water channeling (to the outer side of the frame), for better drainage of the rail.
- Optional Lift & Slide Mechanism that which completely seals the sash with the frame.
- Higher, minimal, aesthetics and protection from the insects due to the use of hidden insect screen.
- Unparalleled aesthetic perfection for greater opening and unobstructed passage with the new flat bottom rail, especially useful in cases of person with moving disability.
- Three options for locking sash:
- Simple
- With handle shape for greater durability to stresses
- With clip
- Option for use of “anti-bi-metal” polyamide on system profiles to eliminate distortion shrinkage and expansions.
- Option for Fix & Slide construction typology (especially useful in cases of hotel rooms).
- Can be combined with the opening systems SV-6800 Thermo and SV-6000 Thermo for complex constructions.
04Tested performance
Technical specification
Figures depend on configuration, size and glazing — your quotation includes values calculated for your exact specification.
- Aluminium Alloy
- EN AW 6060 T6
- Hardness
- 12 Webster
- Minimum coating thickness
- 75µm
- Profile thickness
- 1,3-1,4mm
- Tolerance according to
- EN 12020-02
- Width of successive rail
- 91mm (two sashes)
- Width of in-wall rail
- 95mm (glass-insect screen-shutter)
- Width of glass sash
- 34mm
- Glazing thickness
- up to 24mm
- Polyamide width
- 20-24mm
- Factor of thermal conductivity for frame
- Uf from 2,6 up to 4,2 W/m²K
- Maximum sash dimensions (WxH)
- 2,3m x 2,5m
- Maximum sash weight
- 250Kg
05Ways to build it
Construction types
06For specifiers
Section drawings
07Where it belongs
Applications & finishes
- Residential
- Extensions
- Hospitality
- Renovation
- Anthracite Grey
- Jet Black
- Traffic White
- Slate Grey
- Bronze Anodised
- Golden Oak
Every SIVAL system is finished to order: powder coating in any RAL shade (matt, satin or gloss), anodised tones, and textured wood-effect finishes including oak, walnut and rosewood. Dual-colour options let the interior differ from the exterior, and marine-grade pre-treatment is available for coastal sites. Powder-coated finishes are guaranteed for up to 25 years.
