SV-2700 Plisse
System code SV-2700
Price on requestGet a free quotation
The SV-2700 Plisse insect screen system is the one that combines the luxurious essence of the plisse mesh and the functionality of the bottom rail, with width 27mm only.
- System
- Insect screen
- Movement on a 27 mm wide bottom guide (Plisse 27) and lower guide height of only 8 mm
- Special cords for fabric support and smooth operation
- Option for double-sided movement
- Black or gray plisse fabric for superior aesthetics
Prefer to talk? +44 7426 890065or use the quick form below.
Free quotation · EN tested · 25-yr finish guarantee
CE Marked
UKCA
01In detail
Overview
The SV-2700 Plisse insect screen system is the one that combines the luxurious essence of the plisse mesh and the functionality of the bottom rail, with width 27mm only. The system is characterized by its smooth operation and the robustness and stability of the lower driver that keep the mesh in place. The plisse mesh is available in two color options: black color, which is the main option, and gray color upon special order. The functionality and stability of the Plisse mesh is based on its folds, 20mm wide and on the cords made of VECTRAN fiber, a special polyester material that offers ease and durability. SV-2700 Plisse combines the luxury of the plisse mesh, the economy, and the quiet operation of the bottom rail of 27mm. The two mesh color options (black in the basic version and gray upon special order) offer aesthetic variety.
02At a glance
What sets it apart

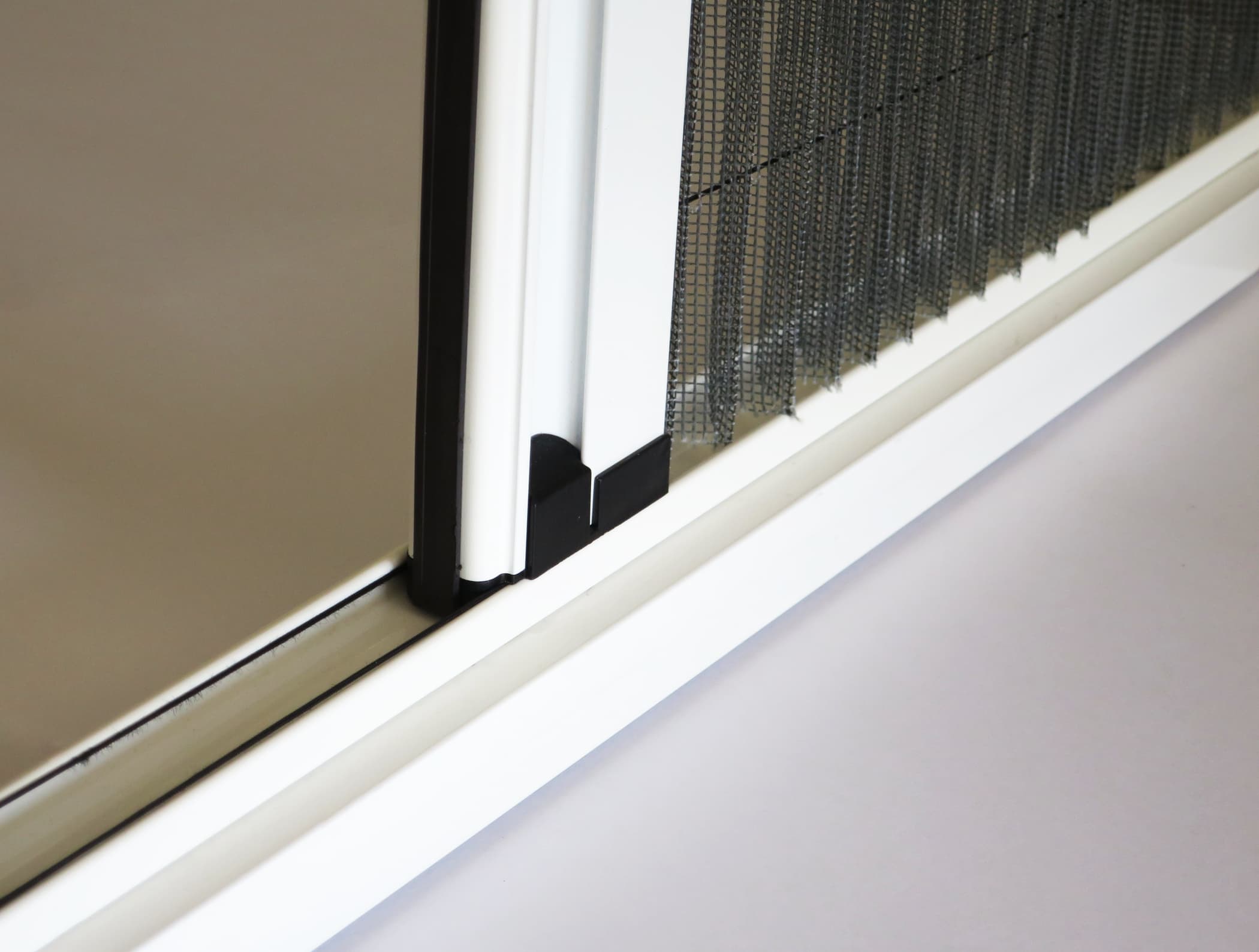

Movement on a 27 mm wide bottom guide (Plisse 27) and lower guide height of only 8 mm

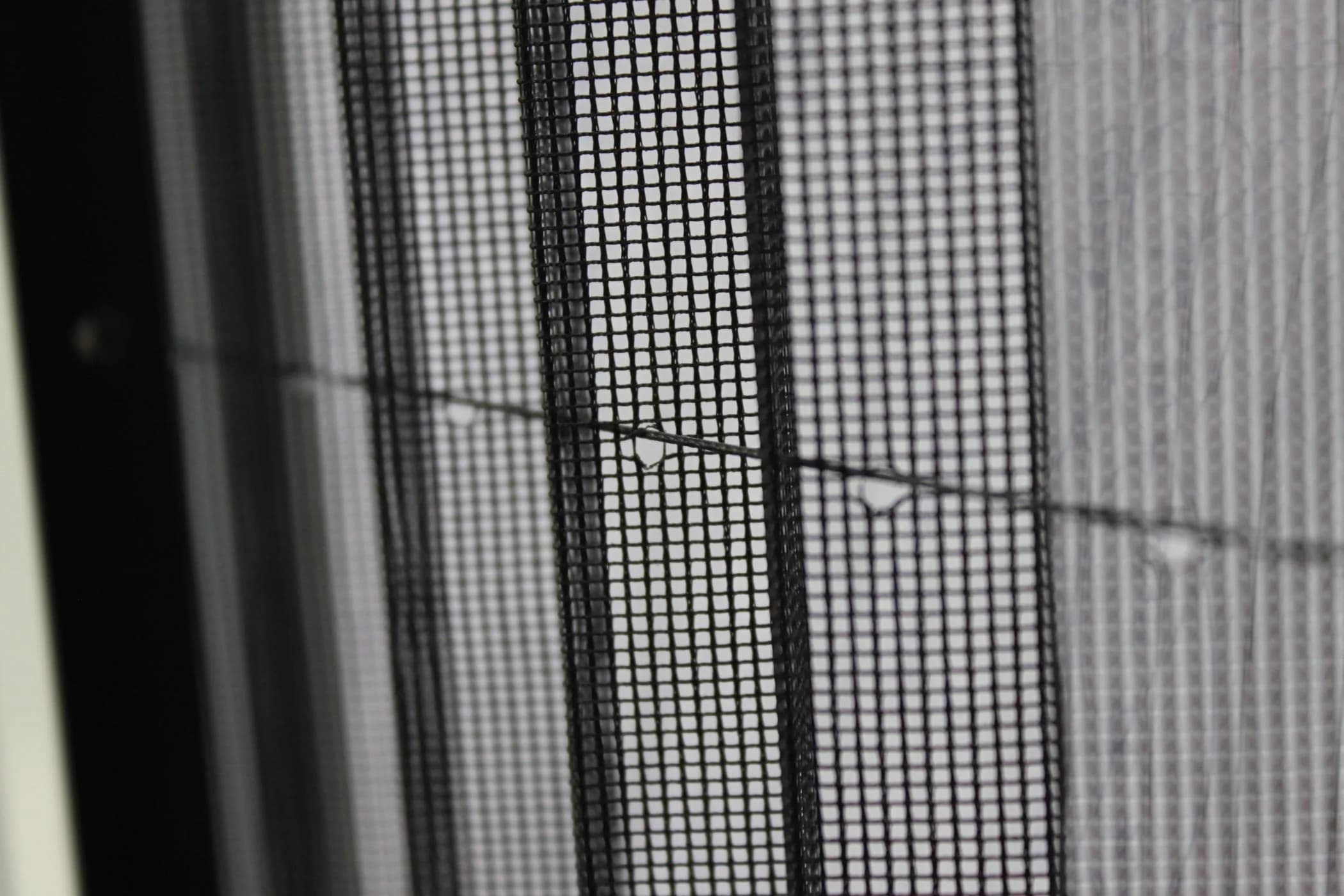

Special cords for fabric support and smooth operation

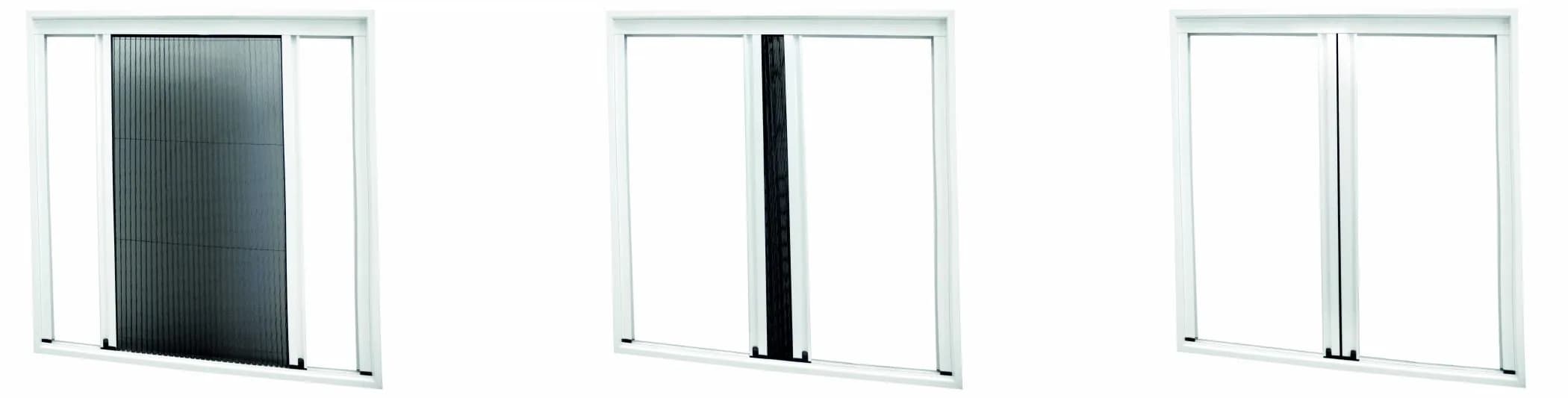

Option for double-sided movement

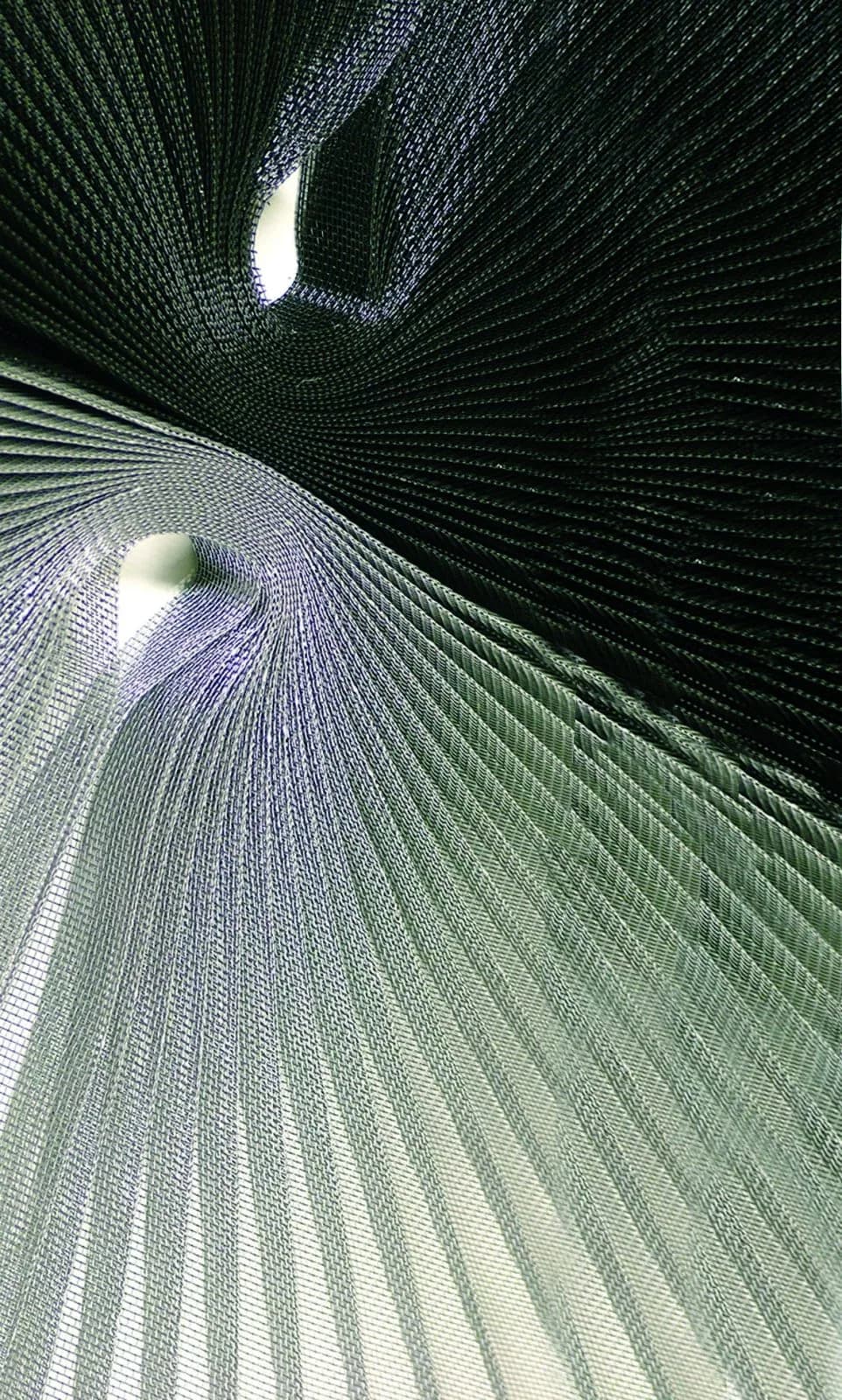

Black or gray plisse fabric for superior aesthetics
03Built in
Key characteristics
- Mesh of fabric made of reinforced polyester material with pleats (plisse type) in two color types:
- Black color mesh which is the basic version.
- Gray color mesh upon special order.
- Smooth, quiet movement, with lower guide 27mm wide and 8mm high for almost unimpeded passage.
- Special cords made of polyester material to support the sail and smooth operation.
- Special design for the possibility of bilateral movement, especially useful in cases of overlapping frames.
04Tested performance
Technical specification
Figures depend on configuration, size and glazing — your quotation includes values calculated for your exact specification.
- Maximum Dimensions
- Single Sash System 1,80 × 2,50 m
- Double Sash System 3,40 × 2,50 m
- Dual Side Sliding Sash System 1,80 × 2,50 m
- Aluminium Alloy
- AIMgSi-0.5 F22
- Hardness
- 12 Webster
- Minimum Coating Thickness
- 75µm
05Ways to build it
Construction types
06Where it belongs
Applications & finishes
- Windows
- Doors
- Residential
- Hospitality
- Anthracite Grey
- Jet Black
- Traffic White
- Slate Grey
- Bronze Anodised
- Golden Oak
Every SIVAL system is finished to order: powder coating in any RAL shade (matt, satin or gloss), anodised tones, and textured wood-effect finishes including oak, walnut and rosewood. Dual-colour options let the interior differ from the exterior, and marine-grade pre-treatment is available for coastal sites. Powder-coated finishes are guaranteed for up to 25 years.
ask about this system
Price the SV-2700 Plisse for your project
Send your approximate sizes and we'll return a detailed quotation — free, itemised and without obligation.
Free, no-obligation quotes
Send drawings or approximate sizes and receive a detailed quotation within 2–3 working days.
Certified performance
Systems tested to EN standards for air, water and wind, with project U-value reports on request.
Guarantees that last
Lifetime structural warranty on profiles and up to 25 years on powder-coated finishes.
