SV-2200 Plisse
System code SV-2200
Price on requestGet a free quotation
The SV-2200 Plisse insect screen system is the combination of economy and superior aesthetics.
- System
- Insect screen
- Movement on a 22 mm wide bottom guide (Plisse 22) and a lower guide height of just 8 mm
- Special cords for fabric support and smooth operation
- Option of double-sided movement
- Black or gray plisse fabric for superior aesthetics
Prefer to talk? +44 7426 890065or use the quick form below.
Free quotation · EN tested · 25-yr finish guarantee
01In detail
Overview
The SV-2200 Plisse insect screen system is the combination of economy and superior aesthetics.
SV-2200 Plisse is the latest version of SV-2700 Plisse. It achieves the same results in functionality and quality, focusing on the soundless movement, the stability, and the aesthetics of the plisse mesh. The mesh is also offered in two color options. In black color, which is the basic version, and in gray color upon special order. At the same time the operating cords are made of special polyester material that offer ease and durability in use.
The significant advantage is the narrower bottom rail of 22mm width, which is narrower compared to most of the corresponding insect screens. The fabric is also narrower, just 16mm wide, achieving greater aesthetics and discretion. At the same time, the extremely low height of the bottom rail, just 8mm allows almost unimpeded passage.
02At a glance
What sets it apart

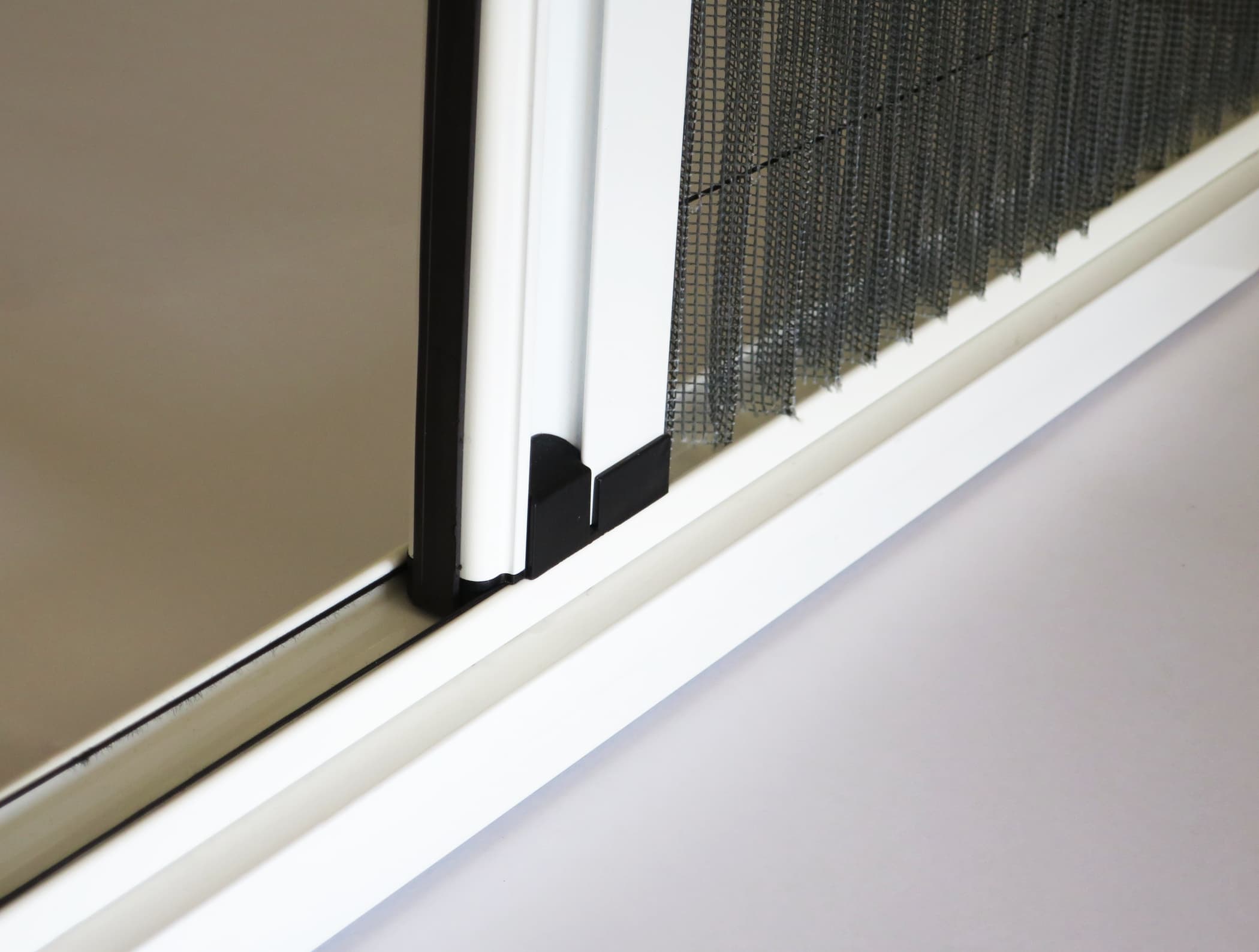

Movement on a 22 mm wide bottom guide (Plisse 22) and a lower guide height of just 8 mm

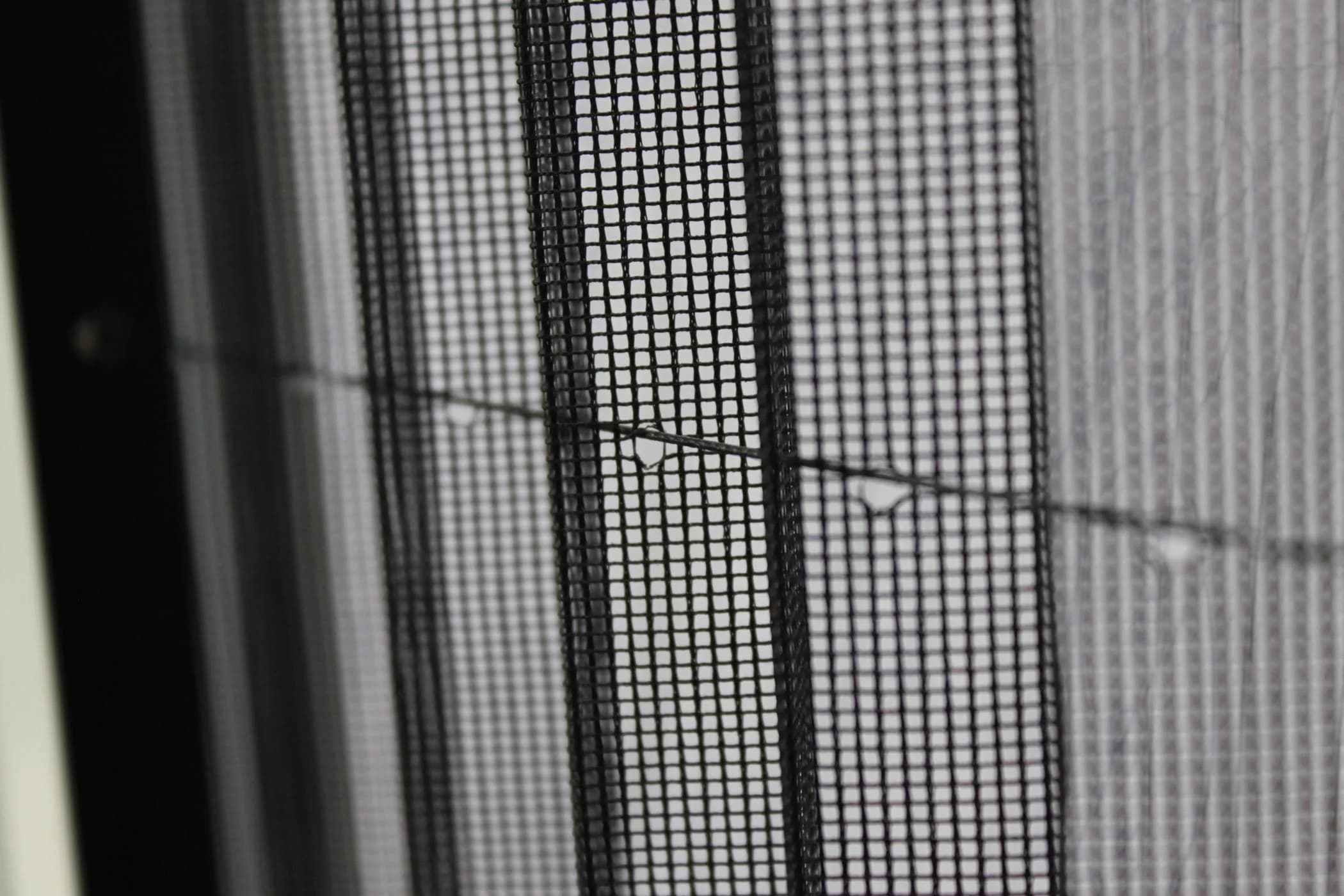

Special cords for fabric support and smooth operation

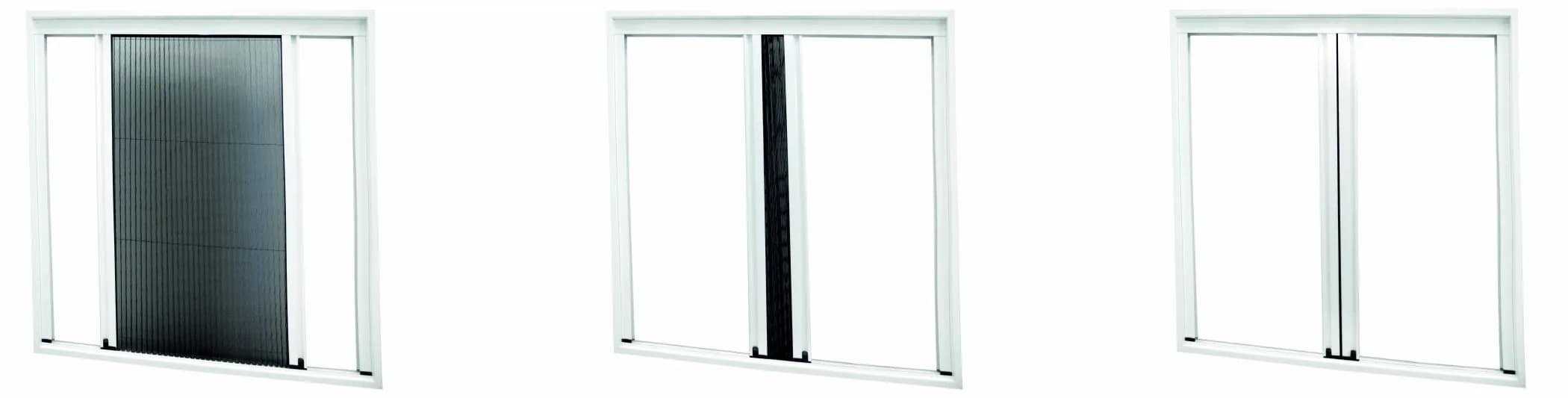

Option of double-sided movement

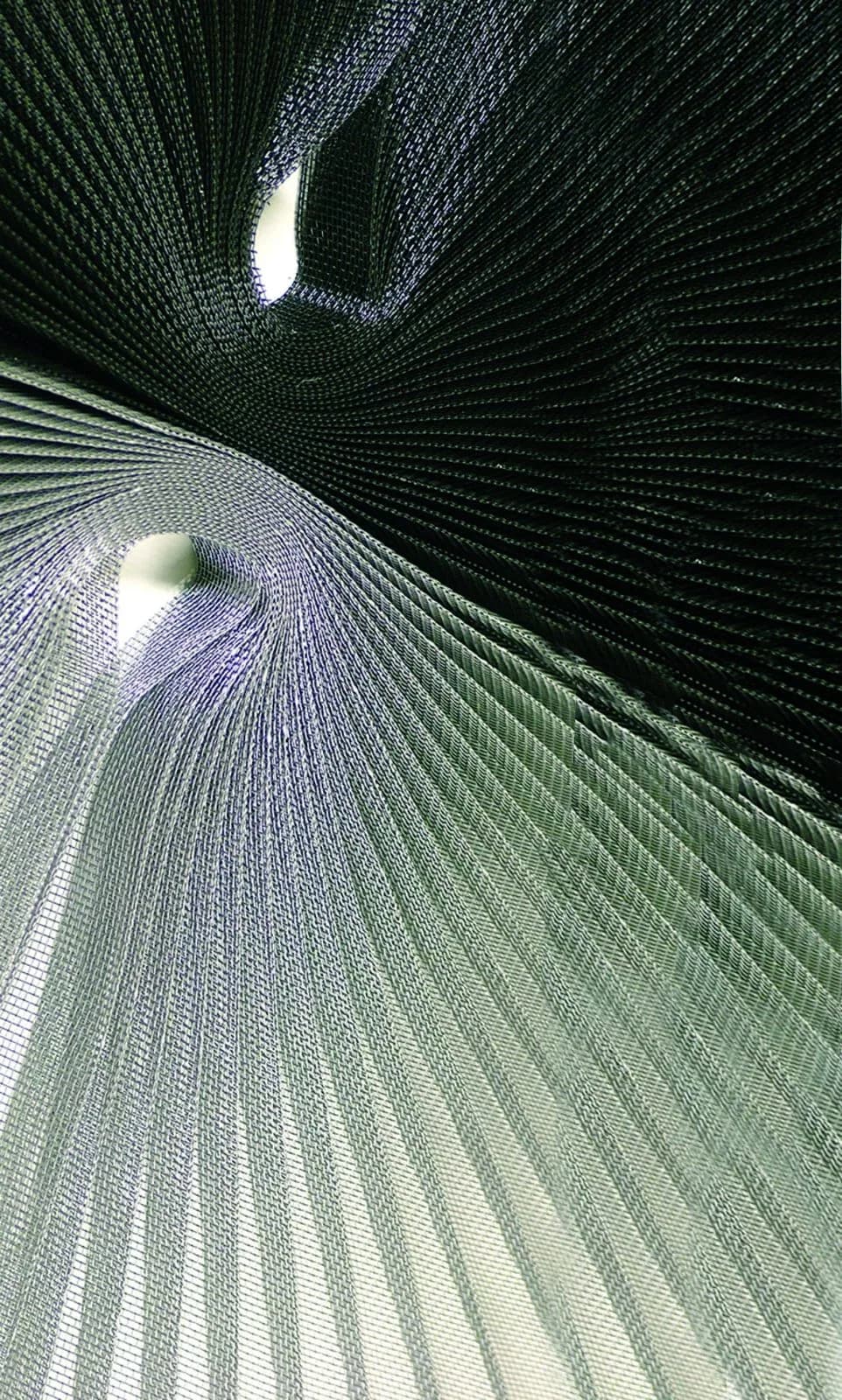

Black or gray plisse fabric for superior aesthetics
03Built in
Key characteristics
- Mesh of fabric made of reinforced polyester material with pleats (plisse type) in two color types:
- Black color mesh which is the basic version.
- Gray color mesh upon special order.
- Smooth, quiet movement, with lower guide 22mm wide and 8mm high for almost unimpeded passage.
- Special cords made of polyester material to support the sail and smooth operation.
- Special design for the possibility of bilateral movement, especially useful in cases of overlapping frames.
04Tested performance
Technical specification
Figures depend on configuration, size and glazing — your quotation includes values calculated for your exact specification.
- Maximum dimensions
- Single Sash System 1,80 × 2,50 m
- Double Sash System 3,40 × 2,50 m
- Dual Side Sliding Sash System 1,80 × 2,50 m
- Vertical Sash System 1,40 × 2,50 m
- Aluminium Alloy
- AIMgSi-0.5 F22 2
- Hardness
- 12 Webster
- Minimum Coating Thickness
- 75µm
05Ways to build it
Construction types
06Where it belongs
Applications & finishes
- Windows
- Doors
- Residential
- Hospitality
Every SIVAL system is finished to order: powder coating in any RAL shade (matt, satin or gloss), anodised tones, and textured wood-effect finishes including oak, walnut and rosewood. Dual-colour options let the interior differ from the exterior, and marine-grade pre-treatment is available for coastal sites. Powder-coated finishes are guaranteed for up to 25 years.
